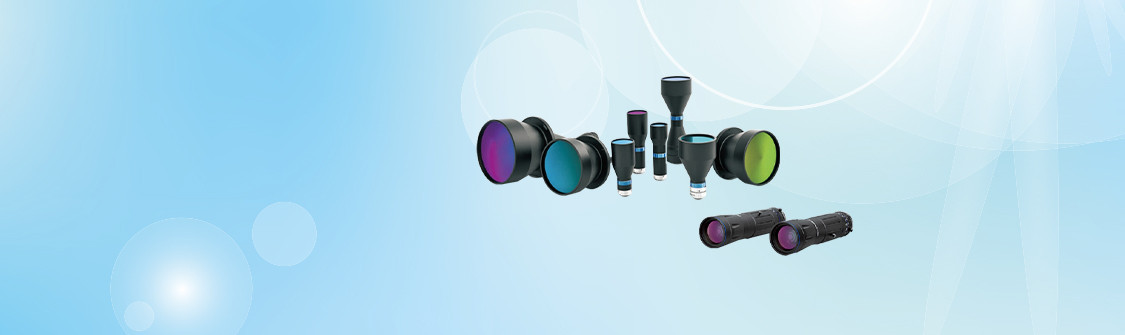

Lenses and Filters
In industrial machine vision, the lens plays a crucial role. It must be selected according to the image field, the pixel size, the resolution and the measurement task.
We offer entocentric lenses for fixed object distances, zoom lenses that can be used variably and macro lenses that are very well suited for small image sections. A special feature are telecentric lenses, which are optimized especially for imaging scale measurements. The quality of the lens has a big influence on the result, because ultimately only the optical information for evaluation can be used, which are transmitted as error-free as possible from the lens.
Laser Beam Profiler WinCamD-LCM
This laser beam profiler features a CMOS sensor that guarantees frame rates of up to 60 Hz with high dynamics and is suitable for large beam diameters up to 11 mm.
2-16 micron Laser Beam Analyzer
The beam analysis camera WinCamD-IR-BB with integrated microbolometer array enables analyzes on long-wave lasers in the range of 2 μm to 16 μm.
Laser Beam Profiler WinCamD-QD-1550
DataRay's ILM system is used for beam profile monitoring of high power lasers consisting of an attenuator for high powers, an imaging lens system and a camera system. The measurement of very small laser beams with diameters of less than micrometers is possible despite often high laser powers.
