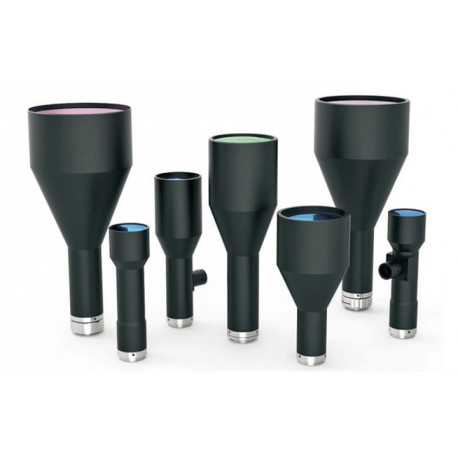

OPT-KS Telecentric Lenses for large FoV
Reference number: OPT-KS
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Product Features:
- Low magnification, large field of view, telecentric design
- Long working distance for easy lighting and flexibility in the spatial design of the imaging system
- High-definition, low distortion, high telecentricity, suitable for up to 1’’ image sensor format
- Best choice for high accuracy detection and localization
|
Part number |
WD [mm] |
Chip Size [Ø mm] |
F / # |
Distortion |
|
OPT-KS10-110-111 |
110 ± 2 |
18 |
7 |
0.13 |
|
OPT-KS10-110C-111 |
110 ± 2 |
18 |
7 |
0.13 |
|
OPT-KS15-110-111 |
110 ± 2 |
18 |
10 |
0.1 |
|
OPT-KS15-110C-111 |
110 ± 2 |
18 |
10 |
0.1 |
|
OPT-KS20-110-111 |
110 ± 2 |
18 |
13.5 |
0.1 |
|
OPT-KS20-110C-111 |
110 ± 2 |
18 |
13.5 |
0.1 |
|
OPT-KS30-110-111 |
110 ± 2 |
18 |
20.1 |
0.1 |
|
OPT-KS30-110C-111 |
110 ± 2 |
18 |
20.1 |
0.1 |
|
OPT-KS03-180-118 |
180 ± 2 |
9 |
8 |
0.1 |
|
OPT-KS03-180-230 |
180 ± 2 |
11 |
10 |
0.1 |
|
OPT-KS014-190-125 |
190 ± 2 |
7.2 |
8 |
0.2 |
|
OPT-KS022-200-230 |
200 ± 3 |
11 |
10 |
0.1 |
|
OPT-KS0345-220-110 |
220 ± 3 |
16 |
8 |
0.1 |
|
OPT-KS05-220-110 |
220 ± 3 |
16 |
8 |
0.1 |
|
OPT-KS022-220-11 |
220 ± 3 |
18 |
8 |
0.1 |
