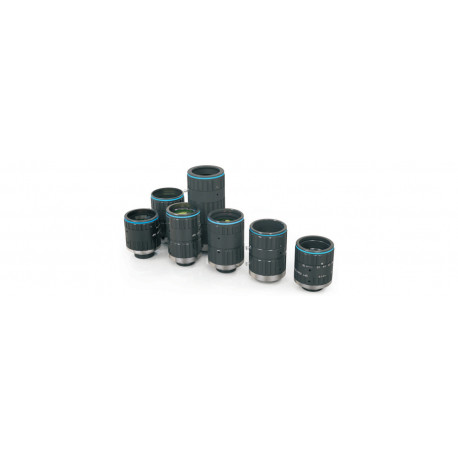

  • OPT 5 MP Fixed Focal Length Lenses

Reference number: OPT-5MP-FF

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • Professional grade design, stable quality, and optical performance
  • High resolution optical design, compatible with many common industrial 5 MP cameras, suitable for 3.45 µm pixel pitch and above, supports 5 MP image sensors of 2/3’’ optical format.
  • Resolution of 140 lp/mm over the whole Field of View (FOV) guarantees crisp images
  • Total distortion < 0.9 %, Minimum as low as 0.02 %
  • High uniformity: Obtain clear uniform images thanks to our anti-shading technologies also with wide-angle lenses
  • Broad spectrum: Suitable for wavelength from 400 to 1000 nm supporting the visual spectrum and NIR band

Part number

Focal length [mm]

Aperture range

WD [mm]

Distortion

Matching chip

OPT-CO420-5M

4

2.0 ~ 16

100 - ∞

< 1.7 %

1/3’’, 1/2.5’’, 1/2’’

OPT-CO620-5M

6

2.0 ~ 16

80 - ∞

< 1.05 %

1/3’’, 1/2.5’’, 1/2’’

OPT-CO825-5M

8

2.5 ~ 16

100 - ∞

< 0.7 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C1216-5M

12

1.6 ~ 16

150 - ∞

< 0.55 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C1614-5M

16

1.4 ~ 16

200 - ∞

< 0.56 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C2514-5M

25

1.4 ~ 16

200 - ∞

< 0.3 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-3514-5M

35

1.4 ~ 16

390 - ∞

< 0.1 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C5025-5M

50

2.5 ~ 22

600 - ∞

< 0.05 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C7528-5M

75

2.8 ~ 32

600 - ∞

< 0.02 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’
