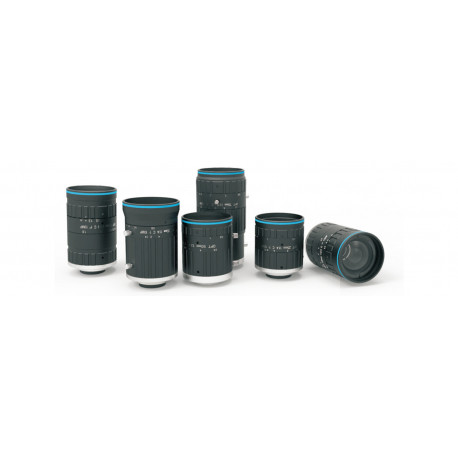

  • OPT 10 MP Fixed Focal Length Lenses

Reference number: OPT-10MP-FF

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • Professional grade design and stable quality. Professional grade optical performance.
  • High Resolution: High resolution optical design, compatible with many common industrial 10 MP cameras, suitable for 3.45 μm pixel pitch and above and 10 MP cameras with sensors size of 1.1".
  • The highest resolution is 140lp/mm to ensure image sharpness
  • Low distortion: Total distortion: < 1 %, Minimum as low as 0,1 %
  • Broad spectrum: Wide spectrum, high pass, suitable for wavelengths from 400 to 1000 nm, compatible with the visual spectrum and NIR band





Part number

Focal length [mm]

Aperture range

WD [mm]

Distortion

Matching sensor format

OPT-C1220-10M

12

F 2.0 – F 16

100 - ∞

< 0.77 %

2/3’’, 1.1’’

OPT-C1616-10M

16

F 1.6 – F 16

100 - ∞

< 0.68 %

2/3’’, 1.1’’

OPT-C2514-10M

25

F 1.4 – F 16

200 - ∞

< 0.3 %

2/3’’, 1.1’’

OPT-C3514-10M

35

F 1.4 – F 16

160 - ∞

< 0.39 %

2/3’’, 1.1’’

OPT-C5024-10M

50

F 2.4 – F 22

550 - ∞

< 0.1 %

2/3’’, 1.1’’

OPT-C7528-10M

75

F 2.8 – F 32

600 - ∞

< 0.1 %

2/3’’, 1.1’’
