InsideView(TM) is an optical coherence domain reflectometer (OCDR- 1000) designed to obtain space-resolved reflection information inside a fiber optical component, such as a Photonic Integrated Circuit (PIC), for diagnosing quality or design issues.
1

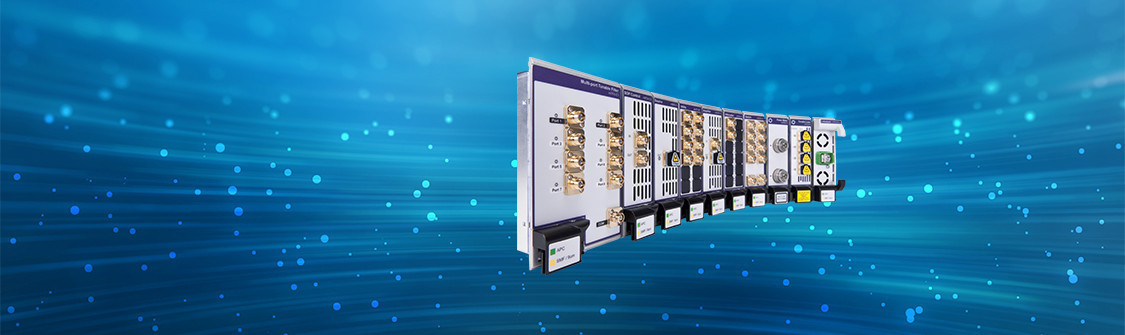

Component Test
Mit der PPMD Quelle -1000 ist es erstmals möglich, deterministisch und mit hoher Auflösung PMD-Werte erster Ordnung bis 180 ps und zweiter Ordnung bis 8100 ps2 zu erzeugen.
With the TIA series we offer optical-electrical converters for laboratory and field use.
The TIA-525 optical receiver is a convenient, easy to use optical to electrical converter
The TIA-525 optical receiver is a convenient, easy to use optical to electrical converter.
The TIA-952 is the optimum instrument for the laboratory or for field use.
The TIA-1200 Optical to Electrical Converter is a wide-band detection system for fiber optic applications.
The TIA-2000 Optical to Electrical Converter is a high speed photodetector module designed for direct optical-to-electrical conversion of RF-modulated optical signals and provides a typical bandwidth of DC-20 GHz
TIA-3000 mit InGaAs-PD 30kHz - The TIA-3000 is an instrument for the laboratory or for field use.
The TIA-4000 is comprised of a fiber coupled InGaAs APD detector combined with a variable reverse bias voltage network and fast transimpedance amplifier
OCT- und Sensorsysteme erfordern hochleistungsfähige ausgewogenePhotodetektoren, um das Signal-Rausch-Verhältnis des Systems zu verbessern. Die BPD-003 wurde speziell für OEM-Anwendungen in solchen Bereichen entwickelt, die auf niedrige Kosten und geringe Größe sowie hohe Leistung ausgelegt sind.
Popular Products
This laser beam profiler features a CMOS sensor that guarantees frame rates of up to 60 Hz with high dynamics and is suitable for large beam diameters up to 11 mm.
The beam analysis camera WinCamD-IR-BB with integrated microbolometer array enables analyzes on long-wave lasers in the range of 2 μm to 16 μm.
This Laser Beam Profiler from DataRay is equipped with a CQD sensor and offers a spectral response in the SWIR range of 400 - 1700 nm with resolutions up to 1920 x 1080 pixel.
DataRay's ILM system is used for beam profile monitoring of high power lasers consisting of an attenuator for high powers, an imaging lens system and a camera system. The measurement of very small laser beams with diameters of less than micrometers is possible despite often high laser powers.
