Piezo assisted X axis, X: 12.5mm, Delta: 3µm, F: 196N
Name: Piezo assisted X axis Aluminium Stages

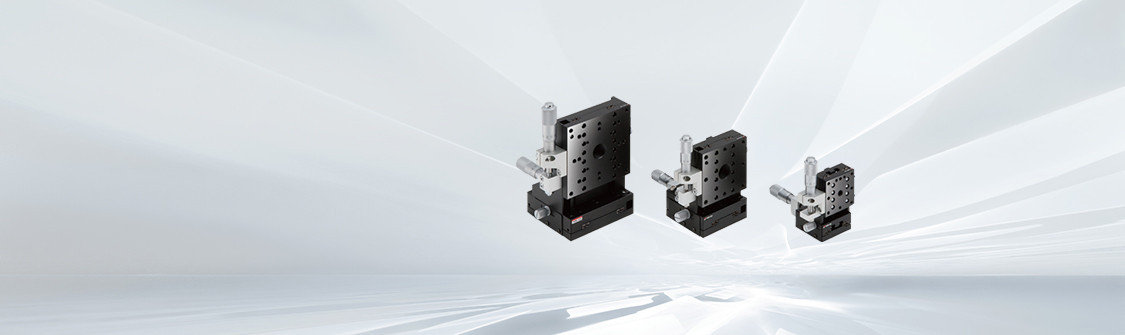

Samples, light sources, or other optical elements must be processed flexibly and finely for many applications. Manual positioning systems in various variants, sizes, and accuracy classes are available from Laser 2000. Most of these products are designed for standard conditions, but they can be adapted for vacuum conditions on request.
This laser beam profiler features a CMOS sensor that guarantees frame rates of up to 60 Hz with high dynamics and is suitable for large beam diameters up to 11 mm.
The beam analysis camera WinCamD-IR-BB with integrated microbolometer array enables analyzes on long-wave lasers in the range of 2 μm to 16 μm.
DataRay's ILM system is used for beam profile monitoring of high power lasers consisting of an attenuator for high powers, an imaging lens system and a camera system. The measurement of very small laser beams with diameters of less than micrometers is possible despite often high laser powers.
A main feature of the WinCamD is the optional M2 Stage. Thus, it can be easily extended to a complete M2 measurement system.
