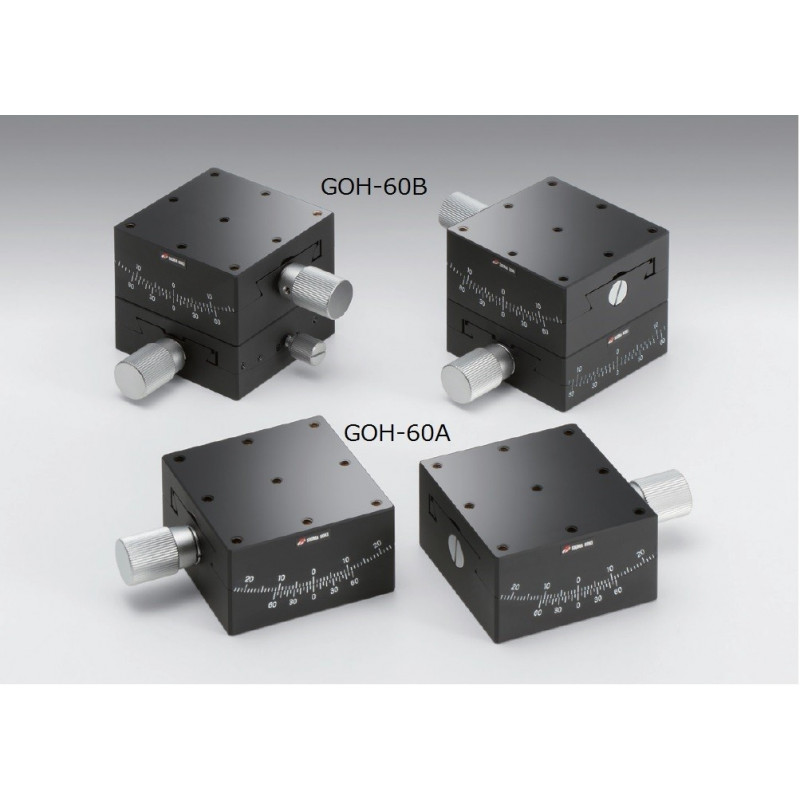

OSE-GOH-60B: Goniometers, 60 x 60 mm

Reference number: OSE-GOH-60B50

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.16
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.88

Downloads

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A76-M6_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A100-M6_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.16
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.88

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A50R-M6_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.16
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.88

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A50UU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.16
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.88

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A50RUU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A76R-M6_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A76UU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A76RUU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A100R-M6_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A100UU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 100±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.86

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-65A100RUU_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.71
Travel per Knob Rotation Beta axis : about 1.03
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 1.6
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.9

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-60B50_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 84±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.58
Travel per Knob Rotation Beta axis : about 0.71
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 1.6
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.75

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-60B84_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.71
Travel per Knob Rotation Beta axis : about 1.03
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 1.6
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.9

Downloads

OSE-GOH-60A_GOH-60B.pdf

DOWNLOAD

OSE-GOH-60B50R_STP.zip

DOWNLOAD

ManualStages.zip

DOWNLOAD

Actuators.pdf

DOWNLOAD

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 84±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.58
Travel per Knob Rotation Beta axis : about 0.71
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 1.6
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.75
