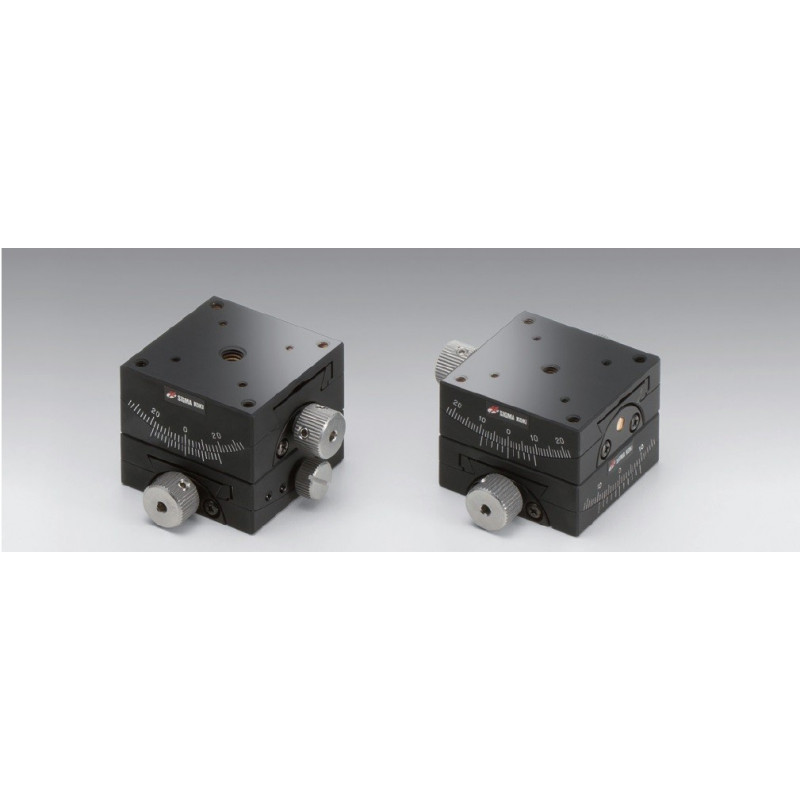

OSE-GOH-40B: Goniometers, 40 x 40 mm

Reference number: OSE-GOH-40B15

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : about 2.83
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.45

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B15RUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40B35UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : about 1.74
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 0.9
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.38

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40B35RUU_STP.zip

ManualStages.zip

Actuators.pdf
