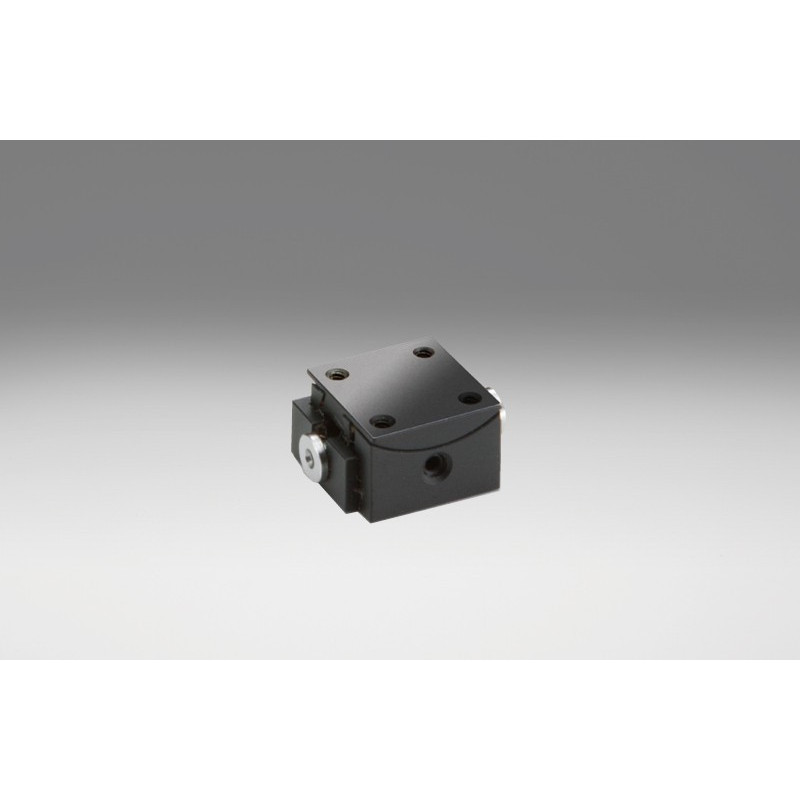

OSE-GOH-15A10: Goniometers, 15 x 15 mm

search

Reference number: OSE-GOH-15A10

alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: Goniometers
  • Tabel Size [mm]: 15 x 15
  • Rotation Center Height [mm]: 10±0.1
  • Angle Range (Upper) Beta axis [ ° ]: -
  • Angle Range (Lower) Alpha axis [ ° ] : ±20
  • Vernier Readable Resolution: -
  • Travel per Knob Rotation Alpha axis : about 5
  • Travel per Knob Rotation Beta axis : -
  • Rotation Center Displacement [mm]: ?0.1 or less
  • Bearing type: Dovetail slide method
  • Primary Material: Brass
  • Finish: Super black chrome
  • Load Capacity [N]: 9.8
  • Max. Moment Capacity / Pitch [Nm]: 0.03
  • Max. Moment Capacity / Roll [Nm]: 0.05
  • Moment Stiffness / Roll [´´/Ncm]: -
  • Parallelism [µm]: 50
  • Gewicht in kg: 0.02
