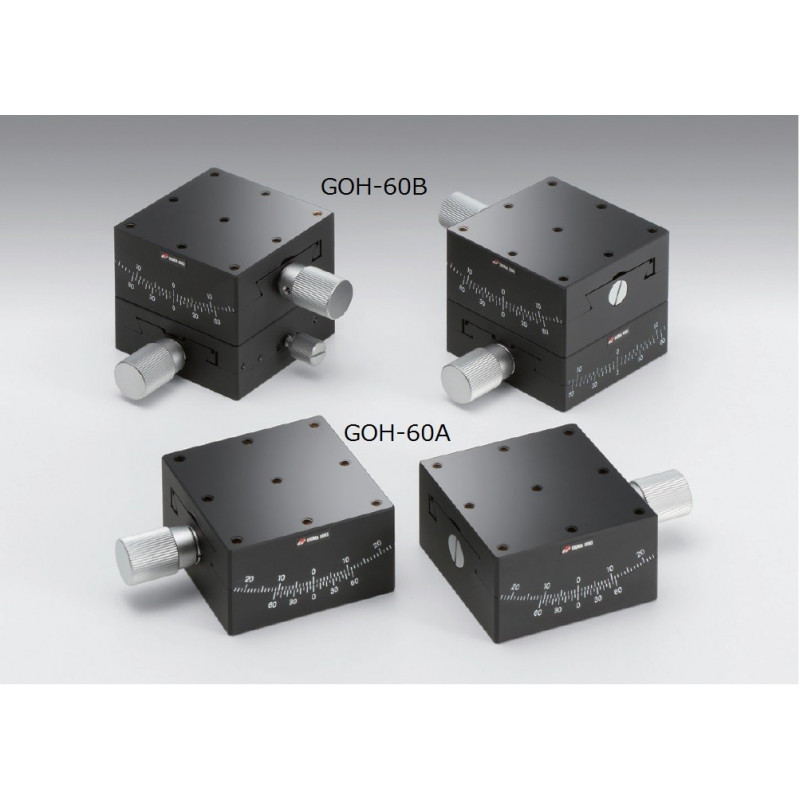

OSE-GOH-60A: Goniometers, 60 x 60 mm

Reference number: OSE-GOH-60A50

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.03
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 1
