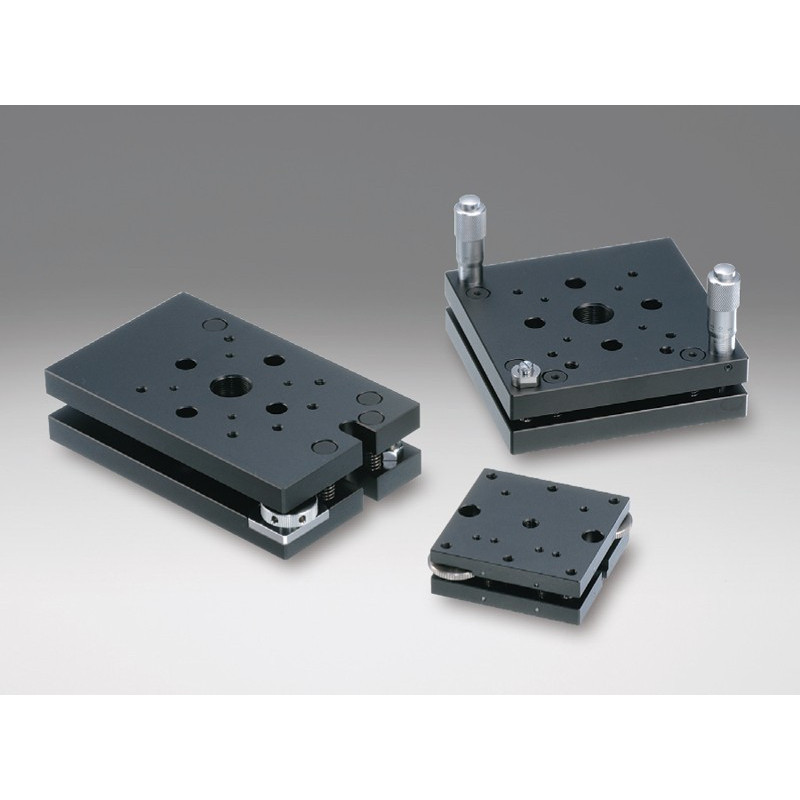

OSE-AIS: Rotation stages, 25 x 25 mm

Reference number: OSE-AIS-25B

Table Size in mm

Load Capacity in N

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40
OSE-GOH-40A: Goniometers, 40 x 40 mm

OSE-GOH-40A

€352.30

Type: Rotation stages
Tabel Size [mm]: 40×40
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 1
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 29.4
Gewicht in kg: 0.06

Downloads

OSE-AIS.pdf

OSE-AIS-40B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 60×60
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 0.65
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 49
Gewicht in kg: 0.17

Downloads

OSE-AIS-60B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 100×100
Tilt Range Alpha axis (Narrow side direction): ±2
Tilt Range Beta axis (Long side direction): -
Travel per Knob Rotation Alpha axis : about 0.36
Travel per Knob Rotation Beta axis : about 0.36
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 68.6
Gewicht in kg: 0.51

Downloads

OSE-AIS-100B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 80×130
Tilt Range Alpha axis (Narrow side direction): ±1.4
Tilt Range Beta axis (Long side direction): ±0.8
Travel per Knob Rotation Alpha axis : about 0.74
Travel per Knob Rotation Beta axis : about 0.37
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 78.4
Gewicht in kg: 0.8

Downloads

OSE-AIS-8013B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 100×160
Tilt Range Alpha axis (Narrow side direction): ±1.2
Tilt Range Beta axis (Long side direction): ±0.7
Travel per Knob Rotation Alpha axis : about 0.6
Travel per Knob Rotation Beta axis : about 0.32
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 98
Gewicht in kg: 1.2

Downloads

OSE-AIS-1016B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 160×220
Tilt Range Alpha axis (Narrow side direction): ±0.7
Tilt Range Beta axis (Long side direction): ±0.6
Travel per Knob Rotation Alpha axis : about 0.33
Travel per Knob Rotation Beta axis : about 0.22
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 98
Gewicht in kg: 2.5

Downloads

OSE-AIS-1622B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 100×100
Tilt Range Alpha axis (Narrow side direction): ±3
Tilt Range Beta axis (Long side direction): -
Travel per Knob Rotation Alpha axis : about 0.35
Travel per Knob Rotation Beta axis : about 0.35
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 68.6
Gewicht in kg: 0.6

Downloads

OSE-AIS-100CM_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 40×40
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 1
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 29.4
Gewicht in kg: 0.06

Downloads

OSE-AIS.pdf

OSE-AIS-40BUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 65×65
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 0.58
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 49
Gewicht in kg: 0.2

Downloads

OSE-AIS.pdf

OSE-AIS-65B-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 65×65
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 0.58
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 49
Gewicht in kg: 0.2

Downloads

OSE-KKD.pdf

OSE-AIS-65BUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: 25×25
Tilt Range in [°] : ±2
Travel per Knob Rotation [°] : about 1.8
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 9.8
Gewicht in kg: 0.04

Downloads

OSE-AIS.pdf

OSE-AIS-25B_STP.zip

ManualStages.zip

Actuators.pdf
