General Photonics phase shifter produces phase shifts up to 15 pi at modulation frequencies from DC to 20 kHz.
1
Components
OCT- und Sensorsysteme erfordern hochleistungsfähige ausgewogenePhotodetektoren, um das Signal-Rausch-Verhältnis des Systems zu verbessern. Die BPD-003 wurde speziell für OEM-Anwendungen in solchen Bereichen entwickelt, die auf niedrige Kosten und geringe Größe sowie hohe Leistung ausgelegt sind.
The FST-001-B is a piezo-driven fiber stretcher with a long optical delay range of up to 3 mm. The device comes complete with a piezo driver packaged in a user-friendly small enclosure.
GPCs’ 2nd generation all fiber phase shifter/modulator provides phase shifts up to 65π with a much lower half-wave voltage (~2 volts as compared with 10-20 volts for the 1st generation phase shifter) at frequencies from DC to 20 kHz
The FPS-003 all fiber phase shifter/modulator combines a wide modulation bandwidth (up to 60 kHz) with low half-wave voltages to create a long-range device that can be driven by standard function generators.

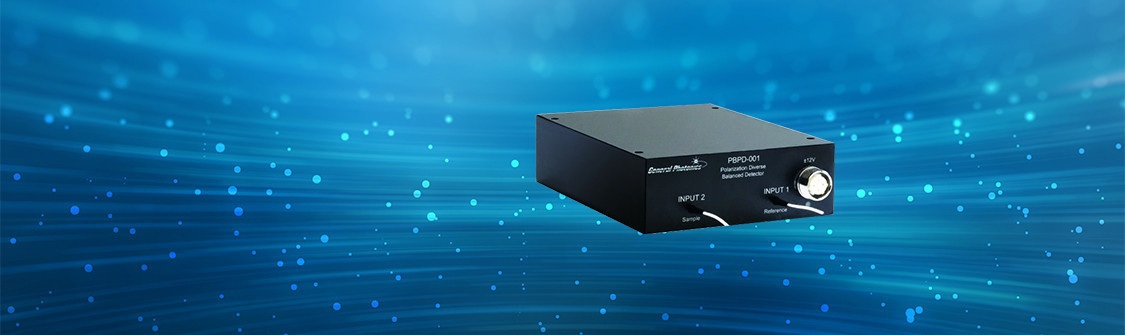

OCT and sensor systems require high performance balanced photodetectors to increase system signal to noise ratio. Polarization sensitive OCT and similar applications require separate analysis of the two polarization components of a signal. The PBPD-001 is specially designed for use in such systems.
Simultaneously detecting the powers of two orthogonal polarization components is important for many sensor and measurement applications. A pigtailed polarization beam splitter coupled with two photodetectors can be used for such applications; however, this arrangement is bulky, troublesome to handle, and costly.
Popular Products
This laser beam profiler features a CMOS sensor that guarantees frame rates of up to 60 Hz with high dynamics and is suitable for large beam diameters up to 11 mm.
The beam analysis camera WinCamD-IR-BB with integrated microbolometer array enables analyzes on long-wave lasers in the range of 2 μm to 16 μm.
This Laser Beam Profiler from DataRay is equipped with a CQD sensor and offers a spectral response in the SWIR range of 400 - 1700 nm with resolutions up to 1920 x 1080 pixel.
DataRay's ILM system is used for beam profile monitoring of high power lasers consisting of an attenuator for high powers, an imaging lens system and a camera system. The measurement of very small laser beams with diameters of less than micrometers is possible despite often high laser powers.
