Reference number: ULT-CTC-Fiber-Polisher

Precision polishing machine CTC for 2 or 4 plugs as tabletop unit is designed for small and medium production volumes, for PC and APC plugs or for surface grinding.

alt

Need more info?
Contact our expert.

Fiber Optics Team

Description

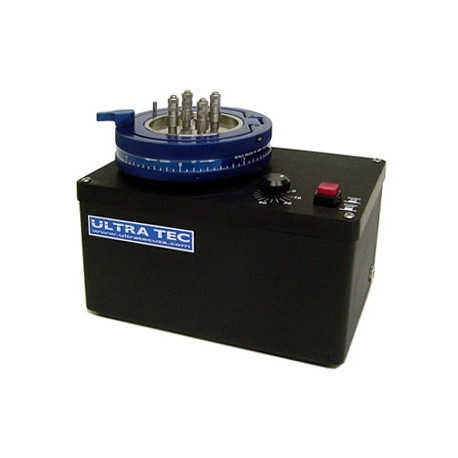

Precision polishing machine CTC

The CTC polishing machine is very user-friendly, due to the simple and clear structure of the machine. For operation are as good as no previous knowledge necessary.
It uses a unique "Fiber Positioning System" in which the optimum contact pressure on the fine adjustment of a fine thread is achieved. As a result, different connector makes and types of connectors can be processed. Also retro-polishing, for already installed plugs for repair is possible.
Ready To Go: The included standard package includes all necessary utensils for the first plug polishes. Only plug holders for 2 or 4 plugs and polishing films must be ordered separately.
Delivery contents:
  • CTC-polishing machine
  • 5 polishing pads
  • Power supply country specific
 Optional:
  • Holder for 4 plugs
    • Surface grinding plug: SMA905, SMA906
    • PC connector: FC, SC, ST, 2.5mm ferrules, LC, MU, 1.25mm ferrules
    • APC connector: FC, SC, 2.5mm ferrules, LC, 1.25mm ferrules
  • Holder for 2 plugs
    • Surface grinding plug: SMA905, SMA906
    • PC connector: FC, SC, ST, 2.5mm ferrules, LC, MU, 1.25mm ferrules
    • APC connector: FC, SC, 2.5mm ferrules, LC, 1.25mm ferrules
  •   Holder for other connectors e.g. E2000 or for POF / PCF on request
Other recommended accessories:
  • Protrusion Gauge
  • Cleave- und Scribetools
Consumables:
  • Polishing film set for singlemode or multimode connector polish
  • Polishing liquid (suspension)
  • Polishing films
Overview of available polishing films:
  • Material: Aluminiumoxid 100 pieces per VPE (0,3µ, 0,5µ, 1µ, 3µ, 5µ, 9µ, 12µ, 16µ, 30µ, Ultrafilm B)
  • Material: Siliziumkarbid 100 pieces per VPE (1µ, 3µ, 5µ, 9µ, 12µ, 16µ, 30µ)
  • Material: Diamant 15 pieces or 50 pieces per VPE (0,1µ, 0,5µ, 1µ, 3µ, 6µ, 9µ, 15µ, 30µ)
