Reference number: STC-Laserschutzkabine

The laser safety ecabins are designed in a way, that for applications with class 4 lasers, the enviroment is properly protected and fullfills the class 1 conditions according to EN 60825-1 and OStrV.

alt

Need more info?
Contact our expert.

Laser Safety Team

Description

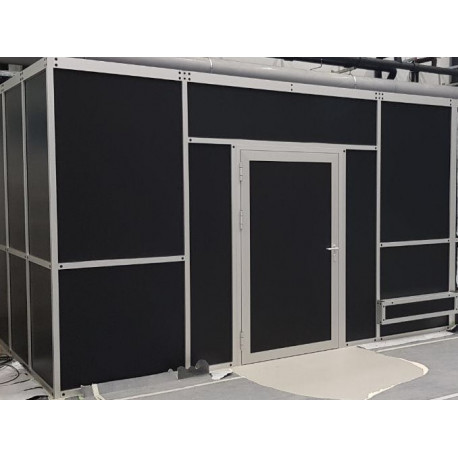

Modular Laser safety cabin

The best way to safeguard a laser enviroment according to EN 60825-1 and OStrV is to enlosuse the whole laser area. Especially in the field of laser material processing with laser powers up to the kW range, this is a very common way to proceed. The cabin will then be desinged in a way, that the laser area is still accessible.


The laser safety cabins can be equipped with the Interlock Control System ICS-6. Additionally a window can be integrated to monitor all operations in the cabin. The modular concept of the laser protection cabins thus offers a very cost-effective and simple way of living around a laser system while fulfilling the international regulations for laser safety. Outside this laser protection cabin, the area can be designated as laser class 1. This ensures a workflow without disruptions and without additional protection requirements.

Properties of the laser safety cabin/enclosure:

  • Flexible cabin concept due to modular design
  • Fast installation of the laser protection cabin
  • Variable design
  • Single-shell wall system
  • Material: Alu-profiles 90 x 45 / 45 x 45 mm
  • Side walls and roof made out of laser tested material*
  • Wall segments will be opaquely inserted in the Alu-profiles
  • Access via swing-doors, sliding doors, gates or flaps
  • Ceiling light (LED modules, 1800 lm, 230 V, 18 W, neutralweiß, 4000 K)
  • Integration for laser safety windows, interlock-controll-systems, warning signs, extraction systems or cable feedthrough possible

The assembly on side can be offered as an additional option. Furtheremore we offer a final expert inspection (survey) of the installed enclosure reagrding laser class 1 according to EN 60825-1.


*Available wall materials:

6 mm alminium compound, black: sucessfully tested according to the conditions of EN 12254 for 100 s with a cw-power of 800 W (beam diameter 1 mm, wavelegnth 1030 nm). This corresponds to a protection level of D AB9 (for 1030 nm).

3 mm aludibond, black: sucessfully tested according to the conditions of EN 12254 for 100 s with a cw-power of 160 W (beam diameter 1 mm, wavelegnth 1030 nm). This corresponds to a protection level of D AB8 (for 1030 nm).

4 mm aludibond, white: sucessfully tested according to the conditions of EN 12254 for 100 s with a cw-power of 160 W (beam diameter 1 mm, wavelegnth 1030 nm). This corresponds to a protection level of D AB8 (for 1030 nm).
