Reference number: LMT-LEDS-1W

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

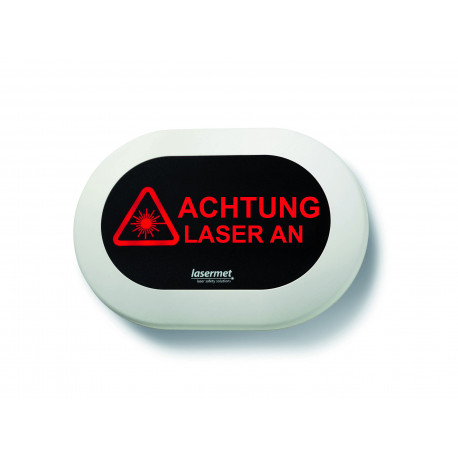

Low Voltage LED Room Information Signs

Compact low voltage signs
These LED room information signs are extra low voltage (24V DC), low energy, low profile signs. Being relatively compact they can be mounted between door handle and eye height which ensures that they will be seen by someone intending to enter the door.

Low energy LED Signs
Utilising the latest LED technology, these signs are ultra low energy with a power consumption of only 3.6W.

Two State or Three State LED Signs
All room information signs are available as two state signs and some are available as a three state sign. Two state signs are either off, displaying a black screen with no message, or on, displaying the message in yellow. Three state signs can be off, displaying a black screen with no message, on-state A, displaying a message in green, or on-state B, displaying a different message in red.

Secret sign
When off there is no visible message. For three state signs the red and green messages display in the same part of the sign at different times.

Health & Safety Advantages
Low voltage LED signs are inherently safer as there is not the necessity of connecting them to mains electricity. The mounting position at around chest height eliminates the need to have ladders in doorways for installation and maintenance purposes.

Maintenance Free
With a lifetime in excess of 50,000 operational hours these signs are effectively maintenance free hence eliminating maintenance costs and risks.

Specifications
  • Dimensions: 160 mm wide x 108 mm high x 38.5 mm deep
  • Weight: 160g
  • Voltage: 24 VDC
  • Power Consumption: 150mA at 24VDC (3.6W)


Power Supply with Switch
For signs that are to be hand switched (rather than automatically switched) a power supply with 2 or 3 way switch is available. This wall or desk mountable unit has clear visual indication of the sign state, including an LED in the end of the switch toggle which lights up the colour of the sign. The power supply can operate up to two compact LED signs.

Also in LED Signs

Room Information Signs
Informative Sign - 'Room In Use'
  • Informative Sign - 'Do Not Enter'
  • Informative Sign - 'Lab in Use'
  • Informative Sign - 'No Entry'
  • Informative Sign - 'Occupied'


Warning Signs
  • Warning Signs - Biohazard
  • Warning Signs - Ion Beam
  • Warning Signs - Ionising Radiation
  • Warning Signs - Laser
  • Warning Signs - Magnetic Field
  • Warning Signs - X-ray


Custom Wording
We are also able to do signs with custom wording and symbols to your requirements. Please contact our Sales Department for information.
