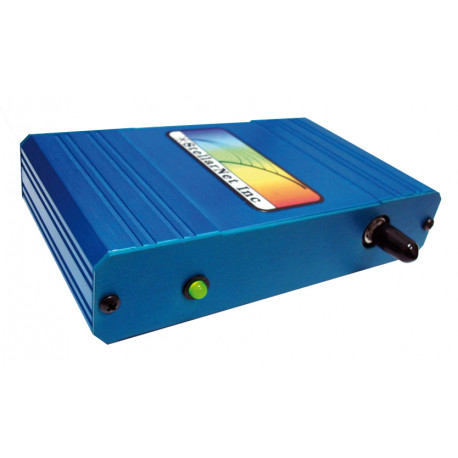

Compact spectrometer BLUE-Wave

search
  • ste-blue-wave.jpg

Reference number: STE-BlueWave

The StellarNet BLUE-Wave miniature spectrometer is a fiber optically coupled instrument with a wide selection of models for measurements in 200 - 1150 nm wavelength ranges.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team

Description

Miniature Spectrometer BLUE-Wave from StellarNet

The StellarNet BLUE-Wave miniature spectrometer is a fiber optically coupled instrument with a wide selection of models for  measurements in 200 - 1150 nm wavelength ranges. Each unit contains a USB interface with a snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048. Various models provide a choice of grating range and slit resolutions.  New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 1000:1!  Up to 8 units can be daisy chained together and are able to run simultaneously.  Additionally the new BLUE-Wave miniature spectrometer can be powered directly from your PC USB-2 port.  A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths. The spectrograph optics are exceptionally robust in a vibration tolerant modular design, with no moving parts.

Application of the Miniature Spectrometer

The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for portable, process, and lab applications. Several units may be daisy-chained using a standard USB hub allowing simple configurations for dual and multi-beam applications in chemistry, spectroradiometry, and PORTA-LIBS.

Additional BLUE-Wave measurement applications include emission wavelength monitoring /characterization of tunable lasers or LED’s and other sources such as elemental emissions from plasma & Laser Induced Breakdown Spectroscopy. Also Bragg grating technology enables optical sensing of many parameters including temperature and pressure. Thin film thickness measurements can be made using sample specular reflectance. The small size and weight makes the BLUE-Wave compact miniature spectrometer just perfect for portable and OEM applications.

Detector Collection Lens of the Miniature Spectrometer

A detector collection lens (DLENS) can be added to the detector window in any miniature spectrometer BLUE-Wave model spectrometer. When used with larger diameter fibers (600 µm and 1000 µm) the DLENS can increase the light collecting efficiency by up to 3 times! This detector upgrade is great for low light application such as fluorescence, reflectance, or any application where increased light collection and data acquisition speed are important.

Specifications of the Miniature Spectrometer

Dynamic range:

2000:1 with 6 decades

Dimensions:

1 x 3 x 5 inch = 25 x 75 x 125 mm

Optical resolution:

see model table - to 0.2 nm

Weight:

14 ounces

Detector type:

CCD, 2k/3k pixels

Power consumption:

< 100 mA via USB port

Detector range:

200 - 1100 nm

Interface:

USB or USB Hub

Pixel size:

14 x 200 µm or 7 x 200 µm

Detector Integration:

1 ms to 65 s

Diffraction Gratings:

Holographic & Ruled

Slit size options:

14, 25, 50, 100, 200 µm

Grating g/mm:

300, 600,1200,1800, 2400

Stray light:

< 1 % at 435 nm < 0.05 % at 600 nm

Spectrograph:

f/4,  SymX-Czerny–Turner

Fiber optic input:

SMA905 0.22 na single fiber

Order sorting filters:

Integrated & High Pass

Operating systems:

Windows XP/Vista/7

Signal to noise:

1000:1

Software included:

SpectraWiz program & apps

Digitizer:

16-bit

Also free programs for:

LabView, Excel+VBA, Delphi

Standard Models:

Model   Wavelength Range [nm] Grating

Slit 200µm

Resolution [nm]

Slit 100µm

Resolution[nm]

Slit 50µm

Resolution[nm]

Slit 25 µm

Resolution[nm]

Slit 14µm

Resolutio[nm]

UV

200-600

1200 3.0 1.6 0.8 0.50 0.40
UV2 200-400 2400 1.5 0.8

0.4

0.25 0.20
UV3

220-350

3600 1.0 0.5 0.25 0.16 0.13
UVIS

300-1100

600 6.0 3.2 1.6 1.00 0.80
VIS

350-1150

600 6.0 3.2 1.6 1.00 0.80
VIS2

380-780

1200 3.0 1.6 0.8 0.50 0.40
NIR

500-1150

600 6.0 3.2 1.6 1.00 0.80
NIR2

600-1000

1200 3.0 1.6 0.8 0.50 0.40
NIR2b

758-1150

1200 3.0 1.6 0.8 0.50 0.40
NIR3

550-840

1800 2.2 1.2 0.6 0.35 0.28
NIR3b

680-935

1800 2.2 1.2 0.6 0.35 0.28
NIR4

500-700

2400 1.5 0.8 0.4 0.25 0.20
NIR4b

600-800

2400 1.5 0.8 0.4 0.25 0.20
UVN

250-1100

600 6.0 3.2 1.6 1.00 0.80
UVNb

200-1050

600 6.0 3.2 1.6 1.00 0.80

Free SpectraWiz Software

The powerful SpectraWiz® spectrometer software is provided free of charge with every spectrometer instrument.  This includes drivers and customizable software for Windows.  The SpectraWiz software is considered the "Swiss Army Knife of Spectroscopy" and may be used to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities.  In addition to real-time spectroscopy,  SpectraWiz® has built-in applications for SpectroRadiometry, SpectroColorimetry, ChemWiz chemistry lab concentration analyzer, and UV level monitors.
