Reference number: LMT-LS-300-50

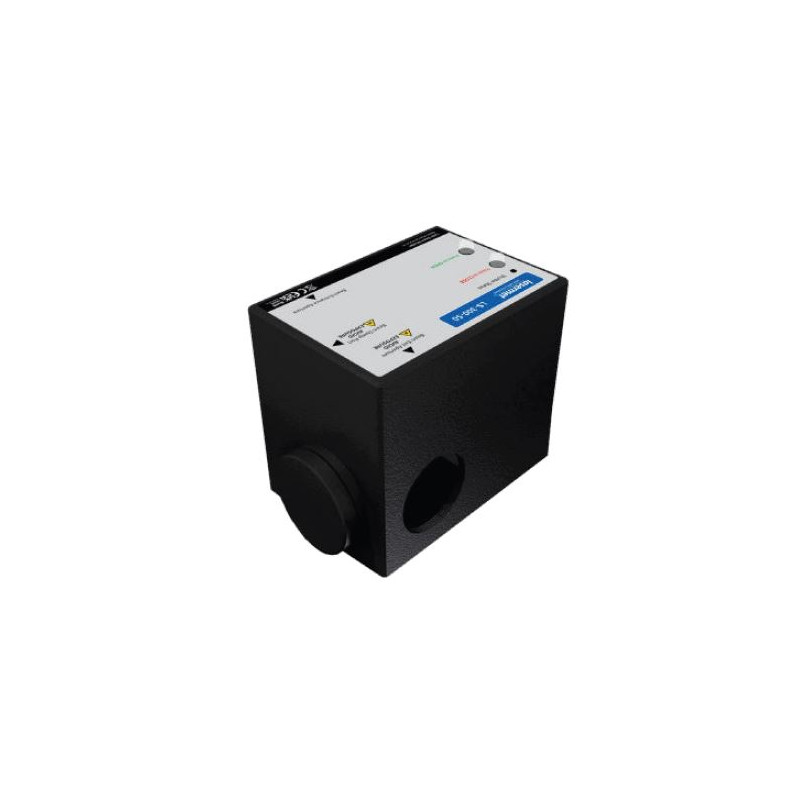

Air-cooled safety shutter with a beam trap (beam dump) for lasers up to 100 W optical power.
Need more info?
Contact our expert.
Laser Safety Team
Phone: +49 8153 405-11
Description
The laser beam shutters of the LMT-LS-300 series are a combination of a shutter and an integrated beam trap. They are used to automatically or manually turn off the laser beam during unauthorized access if the beam is not needed. The shutters are suitable for use with lasers of up to 100 W. For higher output power, a mirrored or ceramic shutter and a matching external beam dump can be used.
All LMT-LS-300 series shutters can be used as free-standing shutters for manual or remote beam switching.
When open, the beam passes through a 50mm aperture with a threaded connector for beam guides.
The shutter LMT-LS-300SIL-50 is available as a double version of the LMT-LS-300-50 and thus meets the maximum possible performance level "e" according to the Machinery Directive.
Specifications:
Integrated shutter with beam dump
Standard blade: steel (mirror or ceramic on request)
Aperture (mm): 50 (threaded for beam guides)
Dimension (mm): 105 x 166 x 130 (210 x 166 x 130)
Weight: 1.94 kg (4 kg)
24VDC
remote switching option
LED status indication (available for remote indication output)
Connection for external beam trap available
