Reference number: EOP-SH-X-O

The laser safety shutter SH Series is ideally suited as an OEM component for low-cost switching and modulating laser radiation. A number of variations are possible, or customized available for larger quantities.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser Safety Shutters

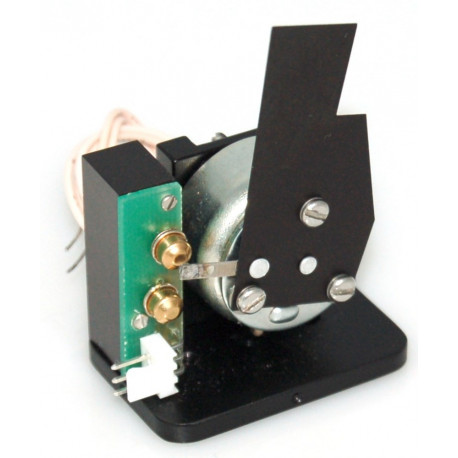

The SH-10 consists of a blade mounted on a rotary solenoid with a limited rotation angle. The SH-20 shutter consists of blades mounted on rotary solenoids. When the shutter is powered, the blade moves to the "ON" position and clears the path for the laser beam. When the power is turned off, the return spring of the shutter moves the blade to the "OFF" position and blocks the laser beam. The standard blade material is 0.1" thick anodized aluminum; to meet laser specifications, other materials or thickness are available.

Configurations of the Laser Safety Shutters


  • Models SH-10-M and SH-20-M shutters come with a mounting plate option and allows horizontal and vertical mounting.
  • Model SH-10-L and SH-20-L shutters offer long life operation: 50 million cycles minimum.
  • Model SH-10-Band SH-20-B shutters are boxed with a window for laser light.
  • Model SH-10-M-L and SH-20-M-L shutters come with a mounting plate and allows horizontal and vertical mounting and offers long life operation: 50 million cycles minimum.
  • SH-10-5 and SH-20-5 for 5V power requirements, SH-10-12 and SH-20-12 for 12V or 15V, and SH-10-24 and SH-20-24 for 24V operation.

Specifications of the Laser Safety Shutters

SH-10

SH-20
Apertures (mm) 13 25
Power Requirements (V) 5, 12, 24 5, 12, 24
Response Time (ms) 15 15
Return Spring Torque (Nm) 0,0055 to 0,009 0,0055 to 0,009
Dimensions B x L x T (mm3) 43 X 56 X 29 69 x 56 x 49
Weigth (g) 60 150
Max. Operating Temperature (°C) 75 75
