Reference number: GEE-GEST

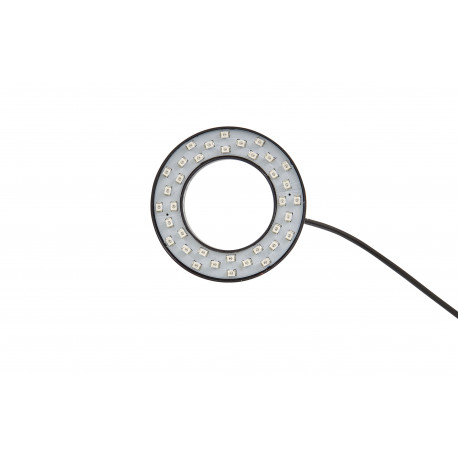

Direct ring light with continuous or strobe driving. GEST illuminator for vision systems with cameras. Available outer diameters from: 42 to 122 mm.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Ring |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR730, IR850, IR940, UV365-405, Red, Blue, Green, custom |
|
Inner/Outer diameter [mm] |
see datasheet |
|
Beam angle [°] |
20, 40, 120, 150 |
|
Cover lens variants |
Transparent, Opaline |
|
Typical luminous flux [lm] |
540 - 30,000 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
3.6 - 20.0 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +40°C |
|
IP rating |
20 - 68 |
