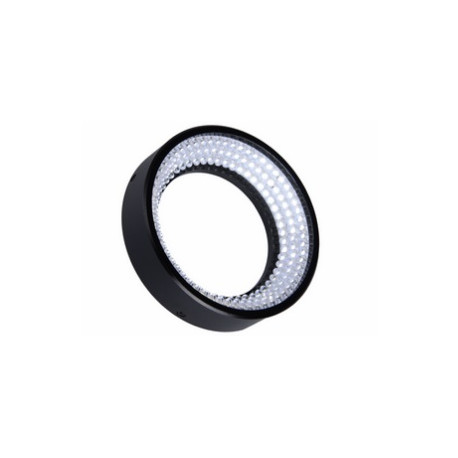

OPT-RI Ring Lights
Reference number: OPT-RI
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Product Features:
- Ring lights can emit light from different angles and highlight three-dimensional information of an object
- The design of the light enclosure enlarges the area for heat transfer. This keeps the device cool and extents its life span
- Diffuser can be selected according to the different requirements of the application
0° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI2800-[c] |
G / B / W / R |
10 / 28 |
0.5 / 0.5 / 0.5 / 0.2 |
|
|
OPT-RI3500-[c] |
G / B / W / R |
14 / 35 |
1.4 / 1.4 / 1.4 / 0.7 |
|
|
OPT-RI3500-IR |
IR 850 / 940 nm |
14 / 35 |
0.6 |
|
|
OPT-RI3500-UV |
UV 365 / 385 nm |
14 / 35 |
1.4 |
|
|
OPT-RI5000-[c] |
G / B / W / R |
25 / 50 |
1.9 / 1.9 / 1.9 / 0.7 |
|
|
OPT-RI7000-[c] |
G / B / W / R |
33 / 70 |
3.2 / 3.2 / 3.2 / 1.4 |
|
|
OPT-RI7000-IR |
IR 850 / 940 nm |
33 / 70 |
1.9 |
|
|
OPT-RI7000-UV |
UV 365 / 385 nm |
33 / 70 |
5.2 |
|
|
OPT-RI9000-[c] |
G / B / W / R |
30 / 90 |
6.2 / 6.2 / 6.2 / 3.5 |
|
|
OPT-RI9000-UV |
UV |
30 / 90 |
10.4 |
|
|
OPT-RI12000-[c] |
G / B / W / R |
50 / 120 |
8 / 8 / 8 / 3.4 |
|
|
OPT-RI12000-IR |
IR 850 / 940 nm |
50 / 120 |
6.0 |
|
|
OPT-RI12000-UV |
UV 365 / 385 nm |
50 / 120 |
13.2 |
|
|
OPT-RI15000-[c] OPT-RI15000-R |
G / B / W R |
25 / 150 25 / 158 |
18 / 18 / 18 7 |
15° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI5015-[c] |
G / B / W / R |
28 / 50 |
3 / 3 / 3 / 1.4 |
|
|
OPT-RI6915-[c] |
G / B / W / R |
33 / 69 |
3.8 / 3.8 / 3.8 / 2.7 |
|
|
OP-RI9215-[c] |
G / B / W / R |
47 / 92 |
4.7 / 4.7 / 4.7 / 2.1 |
|
|
OPT-RI10015-[c] |
G / B / W / R |
55 / 100 |
7.6 / 7.6 / 7.6 / 4.4 |
20° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI3220-[c] |
G / B / W / R |
10 / 32 |
0.8 / 0.8 / 0.8 / 0.7 |
25° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI2825-[c] |
G / B / W / R |
16 / 28 |
0.5 / 0.5 / 0.5 / 0.2 |
|
|
OPT-RI4225-[c] |
G / B / W / R |
16.2 / 42 |
1.2 / 1.2 / 1.2 / 0.4 |
30° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI5030-[c] |
G / B / W / R |
26.5 / 50 |
1.7 / 1.7 / 1.7 / 0.6 |
|
|
OPT-RI5030-IR |
IR |
26.5 / 50 |
1.0 |
|
|
OPT-RI5030-UV |
UV 365 / 385 nm |
26.5 / 50 |
2.3 |
|
|
OPT-RI7030-[c] |
G / B / W / R |
30 / 70 |
3.1 / 3.1 / 3.1 / 1.3 |
|
|
OPT-RI7030-IR |
IR 850 / 940 nm |
30 / 70 |
1.9 |
|
|
OPT-RI7030-UV |
UV 365 / 385 nm |
30 / 70 |
4.3 |
|
|
OPT-RI9030-[c] |
G / B / W / R |
40 / 90 |
5.3 / 5.3 / 5.3 / 2.3 |
|
|
OPT-RI9030-IR |
IR 850 / 940 nm |
40 / 90 |
3.4 |
|
|
OPT-RI9030-UV |
UV 365 / 385 |
40 / 90 |
7.0 |
|
|
OPT-RI12030-[c] |
G / B / W / R |
60 / 120 |
11 / 11 / 11 / 3.8 |
|
|
OPT-RI12030-IR |
IR 850 / 940 nm |
60 / 120 |
3.4 |
|
|
OPT-RI12030-UV |
UV |
60 / 120 |
14.4 |
|
|
OPT-RI15030-[c] |
G / B / W / R |
94 / 150 |
10 / 10 / 10 / 4.3 |
|
|
OPT-RI18030-[c] |
G / B / W / R |
120 / 180 |
18.5 / 18.5 / 18.5 / 10 |
|
|
OPT-RI18030-IR |
IR 850 / 940 |
120 / 180 |
11.2 |
45° - Emitting angle
|
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
|
OPT-RI5045-[c] |
G / B / W / R |
20 / 50 |
2.3 / 2.3 / 2.3 / 0.9 |
|
|
OPT-RI7045-[c] |
G / B / W / R |
38 / 70 |
4.2 / 4.2 / 4.2 / 1.5 |
|
|
OPT-RI9045-[c] |
G / B / W / R |
56 / 90 |
4.8 / 4.8 / 4.8 /1.9 |
|
|
OPT-RI9045-UV |
UV 365 / 385 nm |
56 / 90 |
7.2 |
|
|
OPT-RI12045-[c] |
G / B / W / R |
68 / 120 |
8 / 8 / 8 / 3.5 |
|
|
OPT-RI12045-IR |
IR 850 / 940 nm |
68 / 120 |
6.0 |
|
|
OPT-RI15045-[c] |
G / B / W / R |
98 / 150 |
11.3 / 11.3 / 11.3 / 4.6 |
60° - Emitting angle
|
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
|
OPT-RI7060-[c] |
G / B / W / R |
40 / 70 |
3.8 / 3.8 / 3.8 / 1.6 |
|
|
OPT-RI7060-UV |
UV 365 / 385 nm |
40 / 70 |
5.8 |
|
|
OPT-RI9060-[c] |
G / B / W / R |
60 / 90 |
4.8 / 4.8 / 4.8 / 1.9 |
|
|
OPT-RI12060-[c] |
G / B / W / R |
67 / 120 |
10 / 10 / 10 / 4 |
|
|
OPT-RI15060-[c] |
G / B / W / R |
108 / 150 |
11 / 11 / 11 / 4.4 |
|
|
OPT-RI15060-IR |
IR 850 / 940 nm |
108 / 150 |
7.5 |
|
|
OPT-RI18060-[c] |
G / B / W / R |
30 / 80 |
13 / 13 / 13 / 5.5 |
70° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI27270-[c] |
G / B / W / R |
236 / 272 |
6.8 / 6.8 / 6.8 / 3.6 |
80° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI5080-[c] |
G / B / W / R |
18 / 50 |
1.6 / 1.6 / 1.6 / 1.2 |
|
|
OPT-RI10080-[c] |
G / B / W / R |
72 / 100 |
3.9 / 3.9 / 3.9 / 1.7 |
|
|
OPT-RI10080-IR |
IR 850 / 940 nm |
72 / 100 |
2.8 |
|
|
OPT-RI10080-UV |
UV 365 / 385 nm |
72 / 100 |
6.0 |
|
|
OPT-RI12080-[c] |
G / B / W / R |
84 / 120 |
8.1 / 8.1 / 8.1 / 5.3 |
|
|
OPT-R27280-[c] |
G / B / W / R |
236 / 272 |
11 / 11 / 11 / 6 |
90° - Emitting angle
|
Part number |
Color [c] |
Inner Ø [mm] / Outer Ø [mm] |
Output [W] |
Compatible Controller |
|
OPT-RI5090-[c] |
G / B / W / R |
20 / 50 |
0.8 / 0.8 / 0.8 / 0.5 |
|
|
OPT-RI7090-[c] |
G / B / W / R |
34 / 70 |
1.3 / 1.3 / 1.3 / 0.4 |
|
|
OPT-RI7090-UV |
UV 365 / 385 nm |
34 / 70 |
1.7 |
|
|
OPT-RI9090-[c] |
G / B / W / R |
50 / 90 |
1.3 / 1.3 / 1.3 / 0.8 |
|
|
OPT-RI9090-IR |
IR 850 / 940 nm |
50 / 90 |
0.9 |
|
|
OPT-RI9090-UV |
UV 365 / 385 nm |
50 / 90 |
2.3 |
|
|
OPT-RI12090-[c] |
G / B / W / R |
86 / 120 |
2 / 2 / 2 / 1.8 |
|
|
OPT-RI15090-[c] |
G / B / W / R |
106 / 150 |
2.9 / 2.9 / 2.9 / 2 |
|
|
OPT-RI18090-[c] |
G / B / W / R |
136 / 180 |
3.1 / 3.1 / 3.1 / 1.4 |
