Reference number: MIS-ORS-2-

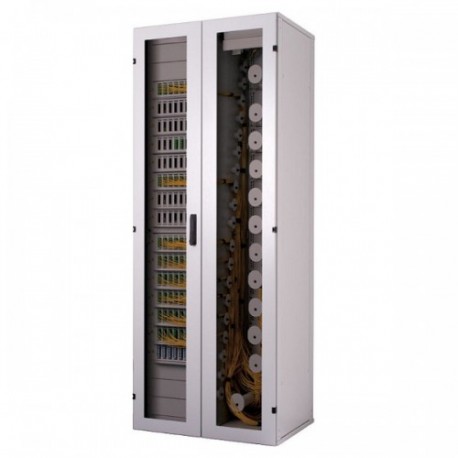

ORS 2/300 Optical Distribution Cabinet. The optical distribution cabinet ORS 2/300 is designed for the placement of 960 optical connectors indoors in the CENTRAL OFFICE. The concept of the distribution box enables to terminate and lead out all types of optical cables to the point of main optical node.

alt

Need more info?
Contact our expert.

Fiber Optics Team
Phone: +49 8153 405-11

Description

ORS 2/300

  • Capacity of 960 optical connectors
  • One section contains 20 modules
  • Modular construction (48 optical connectors)
  • Module for the placement of splice trays or patchcords reserves
  • Simple accessible – double rotating system (rack, module)
  • Connector panel for E2000 or SC
  • Option of left or right handed rack and module
  • The placement of optical fiber up to 5 m
  • Easy modular system
  • Simple handling with connecting patchcords
  • Frame locking in the open positin
  • Recommended patchcords diameter 1.8 mm
Colour Light grey RAL 7035
Material – distribution box Painted steel
Dimensions 2200 × 830 × 300 mm
Weight 177 kg

ORS 2/600

  • Capacity of 960 optical connectors
  • One section – 20 modules
  • Module structure (48 optical connectors)
  • Module for the placement of splice trays or patchcords reserves
  • Easy access – double rotation frame (rack,module)
  • E 2000, SC connector panel
  • Option of left or right handed rack and module
  • Placement of up to an 8 m optical fiber reserve
  • Easy module system
  • Frame locking in the open position
  • Recommended patchcords diameter 1.8 mm
Colour Light grey RAL 7035
Material – distribution box Painted steel
Dimensions 2200 × 830 × 600 mm
Weight 205 kg
