  • Optical Component Analyzer

Reference number: GPC-OCA-1000

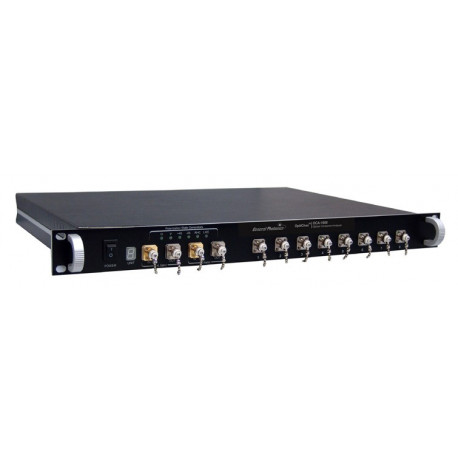

The OCA-1000 is a multi-channel optical component analyzer capable of performing simultaneous insertion loss (IL), polarization dependent loss (PDL), and optical power (P) measurements on multiple optical paths.

alt

Need more info?
Contact our expert.

Fiber Optics Team
Phone: +49 8153 405-11

Description

Optical Component Analyzer

The measurement is based on the Mueller Matrix method, which offers
fast characterization of wavelength dependent optical parameters that are critical in today’s optical communication systems. The base model can have up to 8 channels, and the system is expandable to additional sets of channels for maximum flexibility.

Features:

  • Wide wavelength range
  • High PDL accuracy
  • High channel-to-channel uniformity
  • User-friendly control program

Applications:

  • PDL vs. wavelength measurement
  • IL vs. wavelength measurement
  • IL/Power vs. Time
  • Pass band parameters: center frequency, BW, ripple, noise floor
  • Fiber optic component characterization
  • Network component characterization (e.g. DWDM, ROADM.)
  • Planar Lightwave Circuits (PLC)
  • Photonic Integrated Circuit (PIC)
