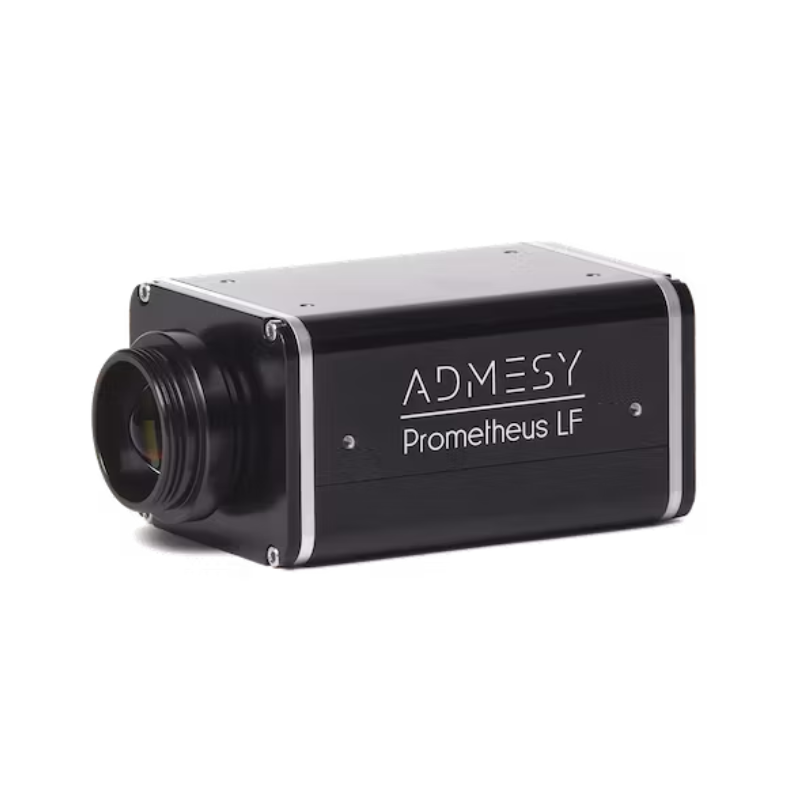

High Speed Photometer Prometheus LF

Description

Prometheus LF Luminance and Flicker Meter

The Prometheus luminance and flicker meter offers a unique combination of high speed and a wide dynamic range. Its sole purpose is to measure luminance and flicker at incredible speed, both at extremely low luminances, but also at very high luminances.

The Prometheus-LF is the evolution of the Asteria and is designed for ultimate performance in the following areas

- Significantly improved luminance filter accuracy

- Very high sampling speed - 800,000 samples per second

- Improved sensitivity for the lower range

- Increased wide dynamic range

H I G H L I G H T S

- Highly accurate luminance measurement according to human perception (CIE1931)

- Extremely fast luminance measurement even at low luminance levels

- Flicker luminance (Y) function: 800 000 (800k) samples/second

- Auto-range function

- Powerful MCU enables internal JEITA flicker calculation

- USBMTC standard compliant

- Compatible with Windows, Linux and MAC OSX

- SDK available for virtually any programming language

Specifications:

Detector: Diode and an interference filter to match CIE 1931 photopic response.

Measurement parameters: flicker and luminance

Dimensions (HxWxD): 53 mm x 70 mm x 100 mm (without lens system)

Weight: ~ 450 g

Mounting: 12 M3 threaded holes distributed on four sides
