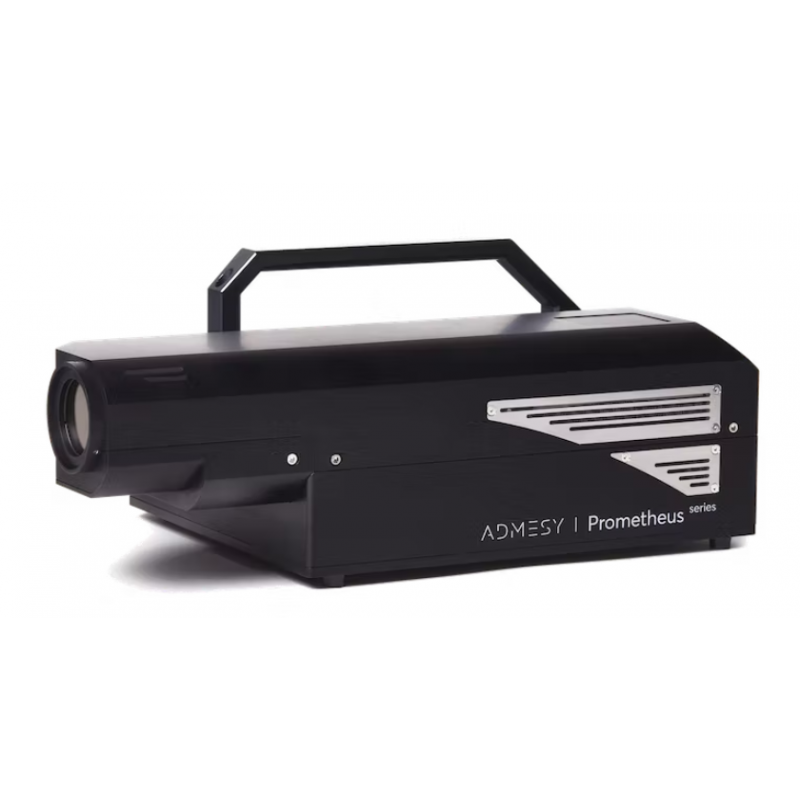

Prometheus Viewfinder Spectrometer

search

Reference number: ADM-SM-PRMT

The ultimate all-in-one solution for display spot measurements. Prometheus Viewfinder offers a viewfinder camera and a flicker sensor in addition to a high-end spectroradiometer. Easy to integrate and designed for 24/7 operation in production environments.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

The Prometheus series spectroradiometer offers a unique combination of ease of use and accurate

measurement capabilities packed in an extra robust package. The Prometheus viewfinder utilizes a

high-end cooled CCD detector for low noise and high dynamic range and a fully automated optical

Prichard mirror system to identify the exact spot where you are measuring.

An ideal device for measurements where ease of use, stability, performance, and price are of the es-

sence. It’s robust package makes it the perfect solution for hassle free integration in your product or

process.

H I G H L I G H T S

• Viewfinder with Pritchard mirror design

• Camera enables to see the measurement spot on screen

• Automatic motorized focus, no need for manual focus

• Focus is factory calibrated, can be controlled by means of a simple software command

• Internal mechanical Shutter and OD filter wheel for very large dynamic range

• Low noise and low stray light

• Auto-range function

• Wavelength and radiance calibrated

• Extremely low polarization sensitivity

• Excellent linearity, internally compensated within ± 0.5 %

• Dark current compensated, virtually zero over entire integration range

• USBTMC compliant, SCPI command set, high speed device

• USB 3, RS232, Ethernet connections and trigger in & out for ideal system integration

• Internal calculations for most common parameters, saving processing power in production

environments

• Robust housing, optimized for mounting and protection in harsh production environments

• Contains photodiode with luminosity function for flicker

• Internal wavelength monitoring function, for health and self-correction of minor wavelength

drifts – this all for ultimate accuracy

• SDK available for virtual any programming language
