Reference number: OXX-LXX

The highly compact diode and DPSS lasers from Oxxius impress with their wide availability in terms of wavelengths and power. Modulation and various fiber coupling options are available for all laser variants.

alt

Need more info?
Contact our expert.

Laser & Light Sources Team
Phone: +49 8153 405-11

Description

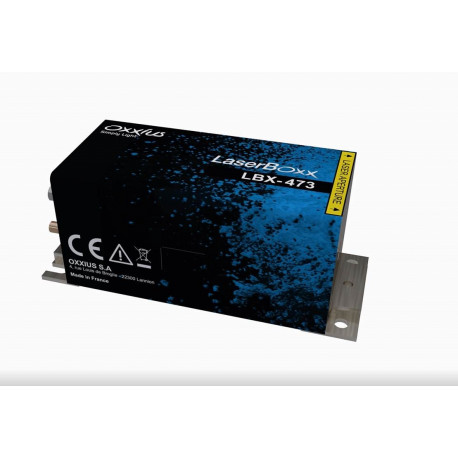

Oxxius LaserBoxx DPSS- and Diodelasers


The low-noise LaserBoxx systems from Oxxius are available with a wide range of wavelengths and powers. In the case of the LBX diode laser variants, the extremely compact lasers are always provided with a laser power control of 0-100 %; in the case of the LCX and LPX DPSS variants, this is optional due to the technology.
The power is set via a controller or alternatively via software and USB interface. For direct integration into e.g. a microscope or a machine, RS-232 interfaces and dedicated I/Os can be controlled in addition to a USB port. The options mentioned are completely included in the scope of delivery.

High power stability, the round beam profile and low noise make these lasers the ideal choice for numerous applications in biotechnology, fluorescence spectroscopy, analytics and microscopy.

Available wavelengths (diode lasers, unless indicated otherwise):

Wavelenght Output power
(continous wave)		 Technology Product number
375 nm 70 mW Laserdiode LBX-375
405 nm 50, 100, 180,
300 mW		 LBX-405
445 nm 100, 500 mW LBX-445
450 nm 70 mW LBX-450
473 nm 100, 300 mW LBX-473
488 nm 40, 50, 60, 100,
150, 200 mW		 LBX-488
505 nm 70 mW  LBX-505
515 nm 150 mW LBX-515
522 nm 70, 100 mW LBX-522
532.2 nm 50-300 mW
500 mW		 DPSS LCX-532L
LPX-532L
553.0 nm 50-200 mW LCX-553L
561.4 nm 50-200 mW
300 mW		 LCX-561L
LPX-561L
639.7 nm 300, 500 mW LPX-640L
633 nm 100 mW Laserdiode LBX-633
638 nm 100,150 mW
180 mW		 LBX-638
642 nm 140 mW LBX-642
647 nm 140 mW LBX-647
660 nm 100 mW LBX-660
730 nm 40 mW LBX-730
785 nm 100 mW
250, 350 mW		 LBX-785
980 nm 200 mW LBX-980
1064 nm 200 mW LBX-1064


NEW available wavelengths: 607 nm, 700 nm, 720 nm, and many more. - feel free to contact us!



Available options:

  • Fibre coupling for all laser types and wavelengths with 2 m length, power stability of ± 2 % and FC-APC connection (others on request):
    • Single-mode fibre FCSM: <70 % coupling efficiency, polarisation ratio: 100:1.
    • Single-mode fibre polarisation-maintaining FCPM: ?70 % coupling efficiency, polarisation ratio: 100:1
    • Multi-mode fibre FCMM: <80 % coupling efficiency, 50 µm 0.22 NM
  • Electro-mechanical shutter ACX-SHTE for DPSS laser (fully compatible with fibre coupling)
  • Motorised power attenuator L1C-MPA for DPSS laser (fully compatible with fibre coupling)
  • Acousto-optical modulator (AOM) L1C-AOM for DPSS laser (fully compatible with fibre coupling).



Optical properties:

Feature Diodelaser LBX DPSS-Laser LCX/LPX
Power stability over 8 h and +/- 3 °C ± 0.5 % ± 1 %
Linewidth < 1.5 nm* < 0.1 nm*
Power adjustment 0 - 100 % 30 - 100 %* / 0 - 100 % via L1C-MPA
Optical noise (% RMS,10Hz - 20MHz)  < 0.2 % < 0.2 %
Far field beam circularity < 90 % < 90 %
Pointing stability < 5 µrad/K < 5 µrad/K
Polarisation (linear) 100:1 1000:1*
Beam divergence < 1 mrad* < 1 mrad*
M² < 1.25 < 1.1

*typical values, may vary in detail, please see data sheet.













The system specifications of the LBX, LCX and LPX lasers have minimal differences with regard to the installation space. The exact dimensions and an overview of all options of the low-noise Oxxius lasers can be found in the data sheet below.



Accessories such as laser safety goggles for adjustment and the corresponding product information can also be found at the respective links.
