Reference number: OXX-Combiner

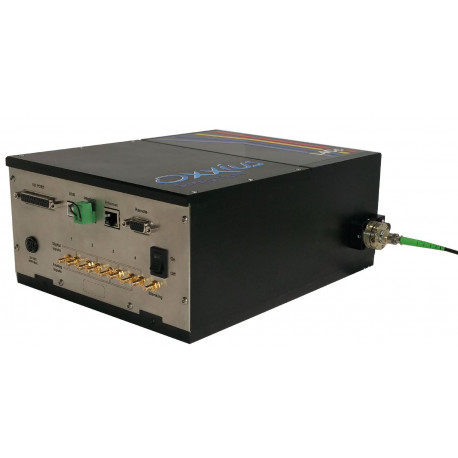

The L6Cc and L4Cc laser combiner from Oxxius integrates 6 or 4 laser modules in a compact multi-wavelength laser system.

alt

Need more info?
Contact our expert.

Laser & Light Sources Team

Description

Oxxius Combiners

The L6Cc, or L4Cc laser combiners from Oxxius integrate 6, or 4 laser modules into a compact multi-wavelength laser system.

The modular design allows a wide range of laser lines. The laser combiner is available as a free-beam version or fiber-coupled in single-mode fiber, polarization-maintaining SM fiber or multimode fiber. The system can be retrofitted with additional laser sources. The laser combiner is controlled by software with a graphical user interface, or by direct control of the individual laser sources via digital or analog modulation inputs. The combiners are compatible with µManager environments, and for many lasers Oxxius also offers Matlab support.


Features:

  • Up to 500 mW per wavelength (low noise and SLM lasers).
  • Direct modulation: analog, digital or combined
  • USB and RS232 computer interfaces and I/O interface
  • SM/PM/MM fiber coupling optional (coupling efficiencies for SM/PM fibers ≥70%, for MM fibers ≥80%).



Available wavelengths (low noise single-mode laser):

  • 375 nm, 70 mW
  • 405 nm, 50 to 300 mW
  • 445 nm, 100 to 500 mW
  • 450 nm, 70 mW
  • 473 nm, 100 to 300 mW
  • 488 nm, 40 to 200 mW
  • 505 nm, 70 mW
  • 515 nm, 150 mW
  • 522 nm, 70 to 100 mW
  • 532 nm, 50 to 500 mW
  • 553 nm, 50 to 200 mW
  • 561 nm, 50 to 300 mW
  • 633 nm, 100 mW
  • 638 nm, 100 to 180 mW
  • 640 nm, 300 to 500 mW
  • 642 nm, 130 mW
  • 647 nm, 140 mW
  • 660 nm, 100 mW
  • 730 nm, 40 mW
  • 785 nm, 250 to 350 mW
  • 980 nm, 200 mW
  • 1064 nm, 200 mW
  • others on request


Available wavelengths (single frequency laser/SLM laser):

  • 532 nm, 50 to 500 mW
  • 553 nm, 50 to 200 mW
  • 561.4 nm, 50 to 300 mW
  • 633 nm, 40 mW
  • 785 nm, 150 mW (500 mW with 0.07 nm linewidth)
  • 830 nm, 100 mW
  • 946 nm, 50 mW
  • 1064 nm, 100 to 500 mW (incl. 532 nm positioning laser)
  • others on request



Available wavelengths (multi-mode laser):

  • 375 nm, 200 to 400 mW
  • 405 nm, 900 to 1200 mW
  • 450 nm, 650 to 1200 mW
  • 473 nm, 1000 mW
  • 488 nm, 1000 to 2000 mW
  • 520 nm, 800 mW
  • 638 nm, 1100 mW
  • 750 nm, 1200 mW
  • 785 nm, 800 mW
  • 940 nm, 800 mW
  • others on request

Areas of application:

  • Super Resolution Imaging
  • Single molecule localization
  • Light Sheet Mikroskopie
  • STORM
  • FRAP
  • Confocal microscopy
  • Optogenetics
  • Flow cytometry
