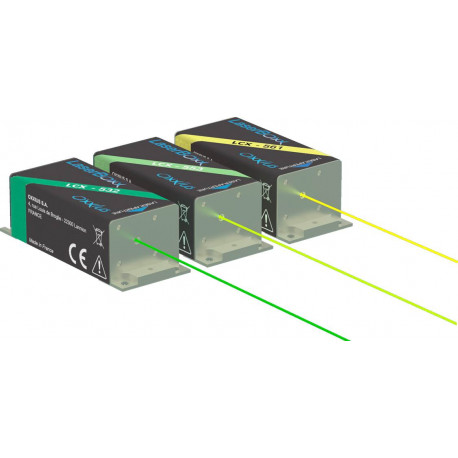

Oxxius single-frequency lasers

search
  • oxxius_lcx_laser.jpg
  • oxxius_lcx_controller.jpg

Reference number: OXX-LXX-SLM

single-frequency lasers for measurement and spectroscopy / DPSS laser and VBG stabilized Laser Diode modules

alt

Need more info?
Contact our expert.

Laser & Light Sources Team

Description

Single Longitudinal Mode lasers

The unique feature of the LaserBoxx DPSS is a proprietary, Alignment-free Monolithic Resonator (AMR). The elements of resonator are assembled into a single ultra-low-loss optical subsystem, using a proprietary crystal bonding technique. A highly transparent compound, deposited on chemically activated end-faces of two crystals, creates a bond that is extremly robust over time, temperature variations, and insensitive to mechanical vibrations. Dielectic mirrors coated at the end-faces of the crystals complete the monolithic assembly with no moving parts.


SLM CW Monolithic DPSS benefits

  • Up to 500 mW
  • Exceptional wavelength stability - 1pm
  • Lowest power consumption
    • ≤ 12 W for LCX’s & LPX’s, any wavelength, less than 200 mW
    • ≤ 15 W for LPX-532 & LCX-1064, 500 mW
    • ≤ 15 W for LPX-561 300 mW
  • Low profile laser head (32 mm)
  • Tailored beam diameter capability (0.6 up to 1.4 mm)

Avaliable wavelenghts:

LCX-532S* LPX-532S LCX-553S* LCX-561S* LPX-561S LCX-946S LCX-1064S* LBX-633S LSX-785S-ISO LBX-830S LBX-785S-MM
Technology DPSS stabilised diode laser
Optical characteristics
Emission wavelengths 532.3 nm 553.0 nm 561.4 nm 946.0 nm 1064.6 nm 632.5 nm 785 nm 830 nm 785 nm
Wavelength Stability
over 8 hours and ±3°K
≤ 1 pm ≤ 10 pm
Linewidth ≤ 1 MHz ≤ 100 MHz typ. 0.07 nm
Coherence Lenght ≥ 100 m ≥ 1 m typ. n/a
Nominal output power,
continuous wave
50 mW bis
300 mW
500 mW 50 mW bis
200 mW
50 mW bis
200 mW
300 mW 50 mW 100 mW bis
500 mW
40 mW 150 mW
mit Isolator
100 mW 500 mW
Control mode Automatic power control (APC) Automatic current control (ACC) ACC
Power stability
over 8 hours and ±3°K
± 1% ± 1%
Power Adjustement Optional L1C-MPA/AOM L1C-MPA/AOM n/a
Optical noise
% RMS, 10Hz - 20MHz bandwidth
≤ 0.2%
Transverse singlemode free-space beam
Beam waist diameter (typ.)
at 1/e², 50mm from output aperture
0.7 ± 0.1 mm 0.7 to 0.2 mm 0.5 ± 0.1 mm
0.5 to 1.0 mm n/a
Beam divergenceat
1/e², full angle, in far field
1.0 ± 0.2 mrad 1.9 ± 0.2 mrad 2.0 ± 0.4 mrad 2 to 4 mrad
≤ 1.7 mrad 2 to 4 mrad
Beam quality factor (M²) ≤ 1.1 ≤ 1.9 ≤ 1.25 ≤ 1.9
Beam circularity
In far field
≥ 90% ≥ 65% ≥ 90% ≥ 65%
Beam pointing stability ≤ 5 μrad/K
Polarization state linear, vertical
Polarization extinction
ratio (typ.)
1000:1 100:1 random
PM fiber coupling option
Nominal output power 35 mW to
210 mW
350 mW 35 mW to
140 mW
35 mW to
140 mW
210 mW 35 mW 70 mW to
350 mW
20 mW 105 mW 40 mW 500 mW
105 μm,
0.22 NA



Areas of application:
  • Raman Spectroscopy
  • Brillouin Scattering
  • Interferometry
  • Photoluminescence
  • Holography
  • Laser Doppler Velocimetry
  • Laser Ultrasonic
  • Dynamic Light Scattering
