Reference number: UNV-G2005-xxx

DIN standard certified laser safety goggles with ergonomic brackets for all laser wavelengths commonly used in telecom and a daylight transmission of 62 %.

alt

Need more info?
Contact our expert.

Laser Safety Team

Description

Laser goggles for telecom applications

These laser safety goggles are ideal for all laser wavelengths commonly used in telecom. The light turquoise colored spectacle lenses are almost colorless so that e.g. Color codes on patch cords can be well recognized. Ergonomically shaped, adjustable brackets (frame -562) ensure optimum wearing comfort. This frame shape allows the wearing of the laser safety goggles also over a normal glasses.

UNV-G2005-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Glass
Filter color: Aqua*
Daylight transmission: 62 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
Frame -531:
190-280 D LB9 + IR LB4
775-1400 DIR LB3
805-1400 DIR LB4
830-1400 DIR LB5
855-1400 D LB5 + IR LB6
880-1400 D LB5 + IR LB7
905-1400 D LB5 + IR LB7
>1400-3000 DI LB3
10600 DI LB3

Frames -559G, -616:
190-280 D LB9 + IR LB4
775-1400 DIR LB3
805-1400 DIR LB4
830-1400 DIR LB5
855-1400 DIR LB6
880-1400 D LB6 + IR LB7
905-1400 D LB6 + IR LB8
>1400-3000 DI LB4
10600 DI LB4

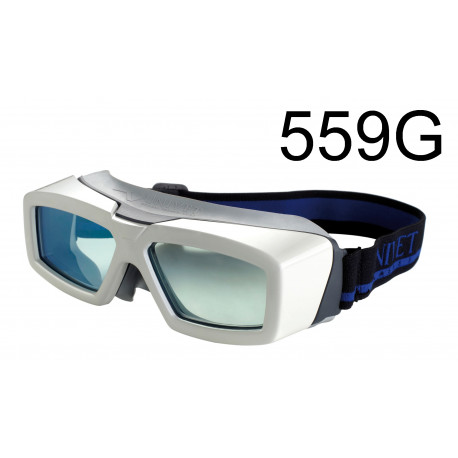

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses


Frame -616:

  • Laser protection for patients
  • Adjustable nose pad
  • Adjustable cord
  • Can be sterilized by an autoclave
