Large Area Laser Safety Cabin for Laser Welding

Description

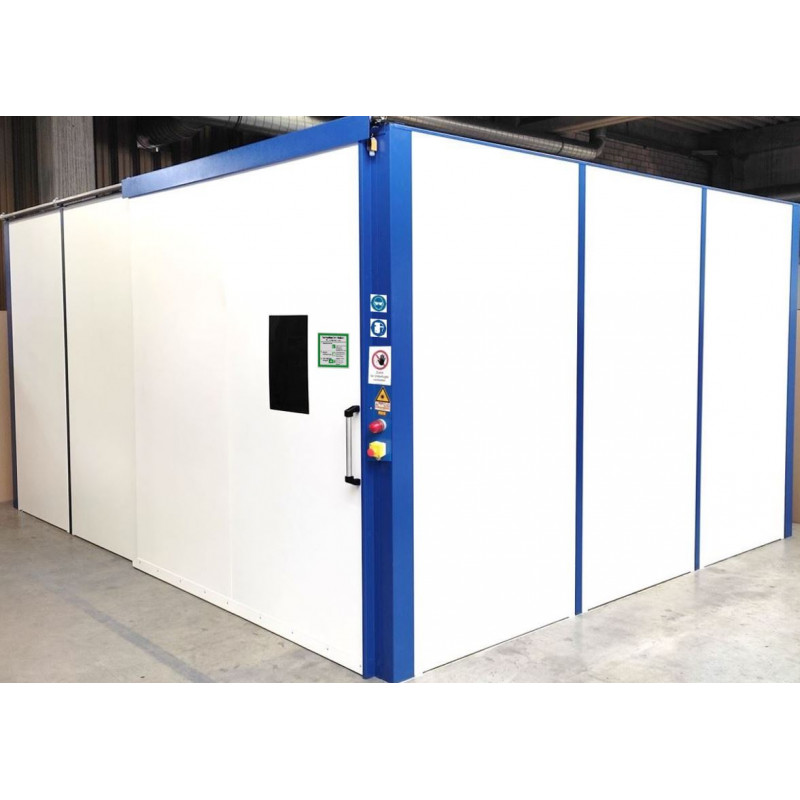

Large area closed top laser welding cabin

According to EN 60825-1, the Weld-Room laser welding cabin protects bystanders outside the laser area from the laser radiation of a hand-held laser welding device. With a floor area of ​​6.0 m x 4.5 m and a height of 3.0 m, the Weld-Room offers a spacious work area for daily laser welding.

Properties of the large area laser welding cabin:

• Floor area (WxD): 6.00 x 4.50 m (smaller and larger dimensions possible in increments of 1.50 m)
• Height: 3.00 m (closed, with roof)
• Access via sliding door with laser protection window
• Safety switch to monitor the door
• Interlock connection for welding laser (shuts off when the door is opened or emergency stop)
• Warning light
• LED lighting of the work area
• 3x socket 230 VAC for additional tools (1x 32 A)
• Laser safe ventilation

Additional options:

• Fume extraction
• Welding table
• Construction and installation

Please note that the wall material only protects against stray light from the laser when using a hand-held laser welding device as intended. It is necessary for the laser protection officer in your company to confirm as part of a risk assessment that the maximum permissible radiation level of the walls is not being reached or exceeded.
