C-Mount ND Filters

DAT-NDSET
search
  • DAT-NDSET
  • DAT-NDSET2
  • DAT-ND-0.5

Reference number: DAT-NDX

Enhance the versatility of your DataRay WinCamD and BladeCam beam profiling cameras with DataRay's C-mount Neutral Density (ND) filters. Designed for precise beam attenuation, these stackable filters feature a 3° angle to minimize etalon effects and are ideal for a wide range of laser measurement applications. Available individually or in convenient sets, they ensure optimal signal levels for accurate beam analysis.

alt

Need more info?
Contact our expert.

Our Team

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

Optimize your beam profiling with DataRay's C-mount ND (Neutral Density) filters. Perfect for WinCamD and BladeCam cameras, these stackable filters provide precise laser beam attenuation, featuring a 3° angle to prevent etalon effects. Available in individual ND values and comprehensive sets (3 or 6 filters), our ND filters are essential for accurate laser measurement and analysis. Explore transmission curves and enhance your beam profiling capabilities.

Key Features:

  • C-mount threaded and stackable holder: Easily integrate and combine filters for varied attenuation levels.

  • Designed for WinCamD and BladeCam cameras: Seamless compatibility with your existing DataRay beam profiling equipment.

  • 3° angle to axis: Minimizes etalon effects, ensuring more accurate measurements.

  • Includes cap with alignment target: Protects filters and aids in system alignment.

  • ND value specified at 675 nm: Provides a clear reference for filter performance.

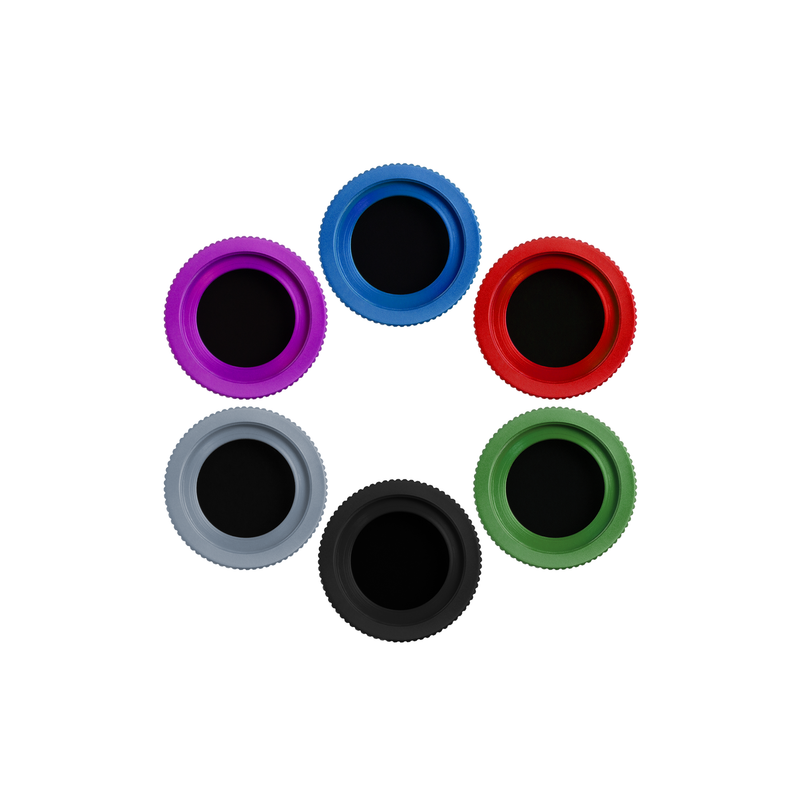

  • Available in sets: Choose from a 3-filter set (ND 1, ND 2, ND 3) or a 6-filter set (ND 0.5, ND 1, ND 2, ND 3, ND 4, ND 5) for comprehensive attenuation options.

  • See charts for ND filter transmission curves: Access detailed performance data for informed selection.

Applications:

  • Attenuating high-power laser beams: Safely reduce beam intensity for optimal camera sensor performance.

  • Preventing camera sensor saturation: Ensure accurate measurements even with bright light sources.

  • Expanding the dynamic range of beam profilers: Capture a wider range of beam intensities without saturation or noise.

  • Optimizing signal-to-noise ratio: Achieve clearer and more reliable beam profiles.

  • General laser power reduction in optical setups: Versatile for various laboratory and industrial applications.
