Reference number: DAT-WinCamD-GCM
This laser beam profiler has a CMOS sensor that guarantees frame rates of up to 60 Hz at high dynamic range and is suitable for large beam diameters up to 11.3 mm. The GCM version works with a GigE connection and is therefore ideal for installation in industrial systems.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description

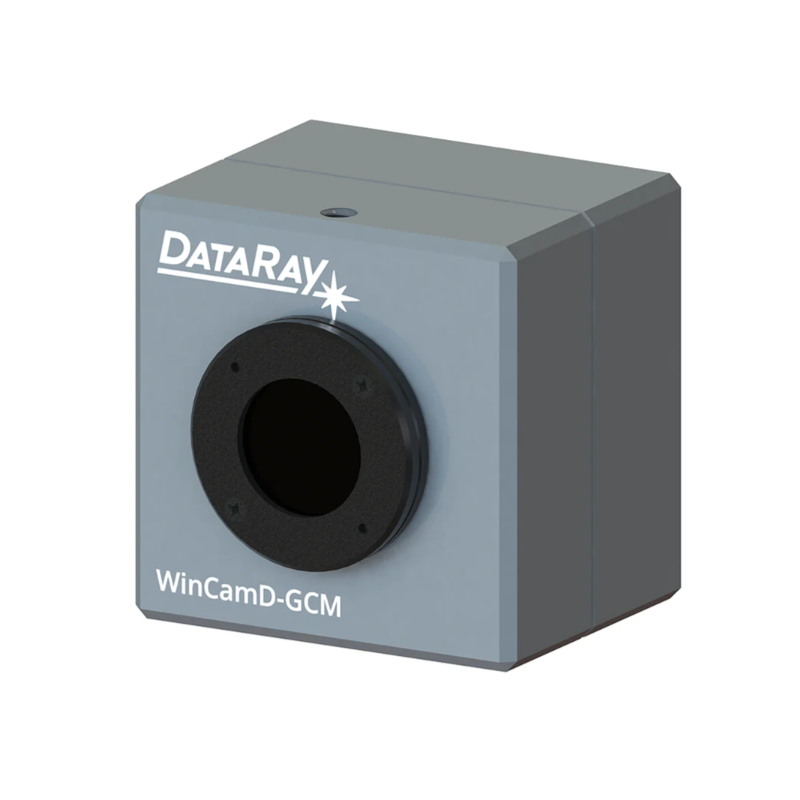

DataRay's WinCamD-GCM Laser Beam Profiler (beam analysis camera) measures pulsed and continuous wave lasers with frame rates of up to more than 60 Hz/fps at very high resolution (2048 x 2048 pixels). In addition to the long-established WinCamD-LCM, the universal system is now also available with GigE / Ethernet connection.
The Laser Beam Profiler is supplied as standard with 3 neutral density filters with optical densities OD1, OD2 and OD4. These are magnetically fixed in front of the C-mount aperture and can be freely combined.
Applications include laser beam analysis of pulsed and CW lasers, service use in the field of laser systems, optical setups, alignment, beam direction stability monitoring, quality control and M² measurement with matching M² stage.
| Specification | Detail |
|---|---|
| Wavelength | WinCamD-GCM: 355 to 1150 nm WinCamD-GCM-1310: 355 to 1350 nm (includes long pass filter) WinCamD-GCM-TEL: 1480 to 1605 nm WinCamD-GCM-UV: 190 to 1150 nm |
| Pixel Count‚ H x V | 4.2 MPixel‚ 2048 x 2048 |
| Optical Format | 1" |
| Image Area | 11.3 x 11.3 mm |
| Pixel Dimension | 5.5 x 5.5 µm |
| Min. Beam (10 pixels) | ~55 µm |
| Shutter Type | Global |
| Max Frame Rate* | 60 Hz |
| Single Pulse Capture PRR | GigE: 25 kHz |
| Signal to RMS Noise | 2,500:1 (34 dB optical / 68 dB electrical) |
| Electronic Shutter Range | 40 µs to 2 sec (47 dB) |
| ADC | 12-bit |
| Measurable Sources | CW beams‚ pulsed sources; CW to 12.6 kHz with single pulse isolation Software configurable Auto-trigger‚ Synchronous & Variable Delay |
| Manual Beam Attenuation | Includes ND-1, ND-2, and ND-4 magnetic ND filters or C-mount ND filters |
Please note that this product requires 64-bit Windows 7, 8/8.1, or 10.
The current software can be downloaded on the manufacturer's website.
