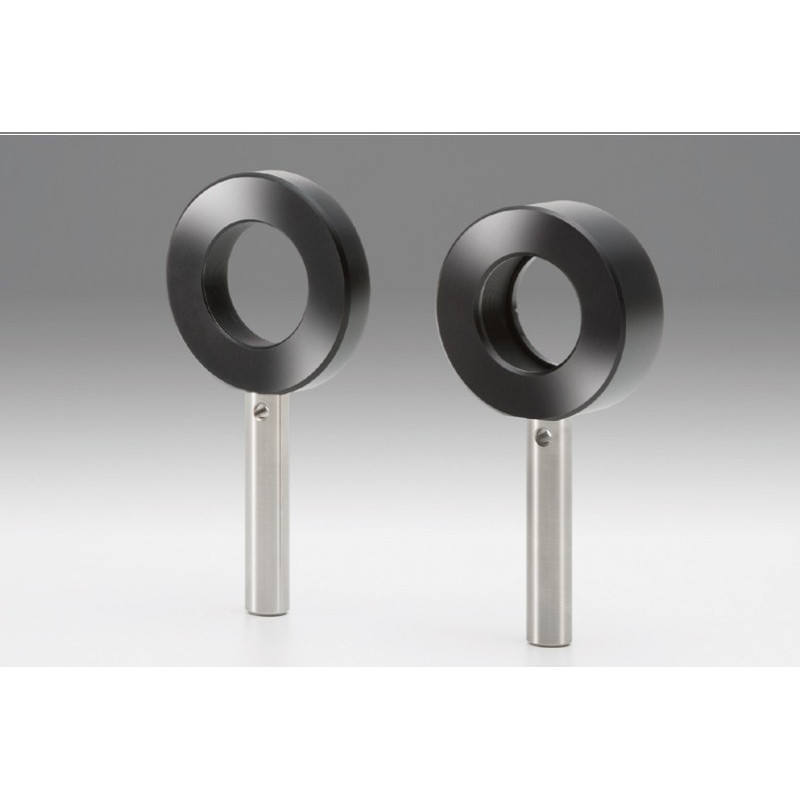

OSE-LHF: OSE-LHF-M29-25: Fixed Multi-element Lens Holders
Reference number: OSE-LHF-M29-25
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
- Compatible optics diameter [mm]: 10
- Compatible optic thickness [mm]: 3 - 6
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.07
- B [mm]: 7
- C [mm]: 15
- D [mm]: 4
- E [mm]: 32
- F [mm]: 12
- G [mm]: M10.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 15
- Compatible optic thickness [mm]: 3 - 10
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.07
- B [mm]: 12
- C [mm]: 20
- D [mm]: 5
- E [mm]: 42
- F [mm]: 16
- G [mm]: M15.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 20
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.09
- B [mm]: 17
- C [mm]: 20
- D [mm]: 7
- E [mm]: 42
- F [mm]: 18
- G [mm]: M20.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 25
- Compatible optic thickness [mm]: 3 - 10
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.1
- B [mm]: 21
- C [mm]: 25
- D [mm]: 6
- E [mm]: 52
- F [mm]: 16
- G [mm]: M26.25P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 25.4
- Compatible optic thickness [mm]: 3 - 6
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.09
- B [mm]: 22
- C [mm]: 25
- D [mm]: 4
- E [mm]: 52
- F [mm]: 12
- G [mm]: M26.25P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 3 - 6
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.09
- B [mm]: 26
- C [mm]: 25
- D [mm]: 4
- E [mm]: 52
- F [mm]: 12
- G [mm]: M30.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 30
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.11
- B [mm]: 26
- C [mm]: 25
- D [mm]: 7
- E [mm]: 52
- F [mm]: 18
- G [mm]: M30.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 38.1
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.13
- B [mm]: 34
- C [mm]: 30
- D [mm]: 7
- E [mm]: 62
- F [mm]: 18
- G [mm]: M38.95P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.13
- B [mm]: 36
- C [mm]: 30
- D [mm]: 7
- E [mm]: 62
- F [mm]: 18
- G [mm]: M40.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 4 - 14
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.14
- B [mm]: 36
- C [mm]: 30
- D [mm]: 8
- E [mm]: 62
- F [mm]: 20
- G [mm]: M40.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 50
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.14
- B [mm]: 45
- C [mm]: 35
- D [mm]: 7
- E [mm]: 72
- F [mm]: 18
- G [mm]: M50.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 50
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.17
- B [mm]: 45
- C [mm]: 35
- D [mm]: 10
- E [mm]: 72
- F [mm]: 24
- G [mm]: M50.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 50.8
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.14
- B [mm]: 46
- C [mm]: 35
- D [mm]: 7
- E [mm]: 72
- F [mm]: 18
- G [mm]: M51.65P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 52
- Compatible optic thickness [mm]: 3 - 15
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.18
- B [mm]: 47
- C [mm]: 40
- D [mm]: 8.5
- E [mm]: 82
- F [mm]: 21
- G [mm]: M52.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 60
- Compatible optic thickness [mm]: 3 - 15
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.18
- B [mm]: 55
- C [mm]: 40
- D [mm]: 8.5
- E [mm]: 82
- F [mm]: 21
- G [mm]: M60.85.P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 60
- Compatible optic thickness [mm]: 4 - 21
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.21
- B [mm]: 55
- C [mm]: 40
- D [mm]: 11.5
- E [mm]: 82
- F [mm]: 27
- G [mm]: M60.85P0.75
- H [mm]: 12
- I [mm]: M6
- Compatible optics diameter [mm]: 80
- Compatible optic thickness [mm]: 3 - 15
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- B [mm]: 73
- C [mm]: 50
- D [mm]: 8.5
- E [mm]: 102
- F [mm]: 21
- G [mm]: M81.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 80.4
- Compatible optic thickness [mm]: 4 - 23
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.37
- B [mm]: 73
- C [mm]: 50
- D [mm]: 12.5
- E [mm]: 102
- F [mm]: 29
- G [mm]: M81.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 100
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.39
- B [mm]: 93
- C [mm]: 60
- D [mm]: 11
- E [mm]: 122
- F [mm]: 26
- G [mm]: M101.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 100
- Compatible optic thickness [mm]: 4 - 22
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.42
- B [mm]: 93
- C [mm]: 60
- D [mm]: 13
- E [mm]: 122
- F [mm]: 30
- G [mm]: M101.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 130
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.45
- B [mm]: 122
- C [mm]: 75
- D [mm]: 11
- E [mm]: 152
- F [mm]: 26
- G [mm]: M131.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 150
- Compatible optic thickness [mm]: 5 - 20
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.62
- B [mm]: 142
- C [mm]: 85
- D [mm]: 12
- E [mm]: 171
- F [mm]: 28
- G [mm]: M151.1P1
- H [mm]: 20
- I [mm]: M6
- Compatible optics diameter [mm]: 80.4
- Compatible optic thickness [mm]: 4 - 23
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.22
- B [mm]: 73
- C [mm]: 50
- D [mm]: 12.5
- E [mm]: 102
- F [mm]: 29
- G [mm]: M81.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 100
- Compatible optic thickness [mm]: 4 - 22
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.27
- B [mm]: 93
- C [mm]: 60
- D [mm]: 13
- E [mm]: 122
- F [mm]: 30
- G [mm]: M101.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 130
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.3
- B [mm]: 122
- C [mm]: 75
- D [mm]: 11
- E [mm]: 152
- F [mm]: 26
- G [mm]: M131.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 150
- Compatible optic thickness [mm]: 5 - 20
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.47
- B [mm]: 142
- C [mm]: 85
- D [mm]: 12
- E [mm]: 171
- F [mm]: 28
- G [mm]: M151.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 10
- Compatible optic thickness [mm]: 3 - 6
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.02
- B [mm]: 7
- C [mm]: 15
- D [mm]: 4
- E [mm]: 32
- F [mm]: 12
- G [mm]: M10.85P0.75
- I [mm]: M4
- Compatible optics diameter [mm]: 25.4
- Compatible optic thickness [mm]: 3 - 6
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.04
- B [mm]: 22
- C [mm]: 25
- D [mm]: 4
- E [mm]: 52
- F [mm]: 12
- G [mm]: M26.25P0.75
- I [mm]: M4
- Compatible optics diameter [mm]: 40
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.08
- B [mm]: 36
- C [mm]: 30
- D [mm]: 7
- E [mm]: 62
- F [mm]: 18
- G [mm]: M40.85P0.75
- I [mm]: M4
- Compatible optics diameter [mm]: 80
- Compatible optic thickness [mm]: 3 - 15
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- B [mm]: 73
- D [mm]: 8.5
- E [mm]: 102
- F [mm]: 21
- G [mm]: M81.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 100
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.39
- B [mm]: 93
- C [mm]: 60
- D [mm]: 11
- E [mm]: 122
- F [mm]: 26
- G [mm]: M101.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 38.1
- Compatible optic thickness [mm]: 3 - 12
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.08
- B [mm]: 34
- C [mm]: 30
- D [mm]: 7
- E [mm]: 62
- F [mm]: 18
- G [mm]: M38.95P0.75
- I [mm]: 8-32UNC
- Compatible optics diameter [mm]: 80
- Compatible optic thickness [mm]: 3 - 15
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.31
- B [mm]: 73
- C [mm]: 50
- D [mm]: 8.5
- E [mm]: 102
- F [mm]: 21
- G [mm]: M81.1P1
- I [mm]: M6
- Compatible optics diameter [mm]: 100
- Compatible optic thickness [mm]: 4 - 18
- Primary material: Aluminium
- Finish: Black Anodized
- Weight [kg]: 0.39
- B [mm]: 93
- C [mm]: 60
- D [mm]: 11
- E [mm]: 122
- F [mm]: 26
- G [mm]: M101.1P1
- I [mm]: M6
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.11
- A [mm]: 56
- B [mm]: 27
- C [mm]: M29 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.11
- A [mm]: 60
- B [mm]: 29
- C [mm]: M34 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.11
- A [mm]: 70
- B [mm]: 34
- C [mm]: M50.9 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 56
- B [mm]: 27
- C [mm]: M29 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 60
- B [mm]: 29
- C [mm]: M34 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 70
- B [mm]: 34
- C [mm]: M50.9 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 56
- B [mm]: 27
- C [mm]: M29 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 60
- B [mm]: 29
- C [mm]: M34 P0.75
- Primary material: Aluminum
- Finish: Black Anodized
- Weight [kg]: 0.06
- A [mm]: 70
- B [mm]: 34
- C [mm]: M50.9 P0.75
