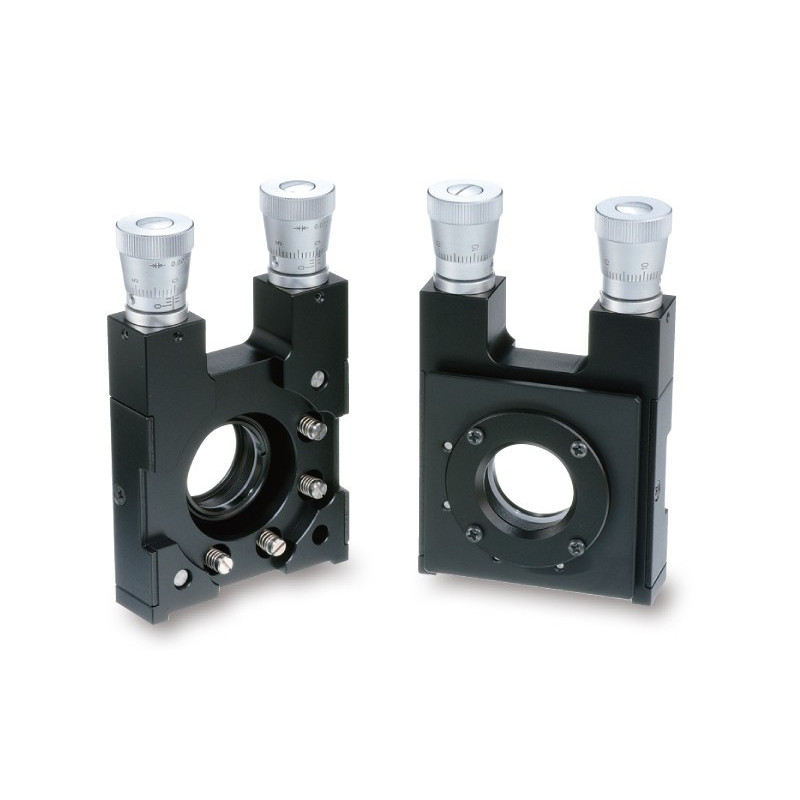

OSE-LMHB: Topmike Vertical Control Mirror holder, D: 25.4mm

Reference number: OSE-LMHB-25.4M

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 9
Adjustment range tilt ±[mm]: 2.8
Adjustment range rotation ±[mm]: 2.8
Coarse resolution /tilt [°/rotation]: -
Coarse resolution /rotation [°/rotation]: -
Fine adjustment range /tilt [°/rotation]: -
Fine adjustment range /rotation [°/rotation]: -
Fine adjuster indicator conversion /tilt: -
Fine adjuster indicator conversion /rotation: -
Resolution /tilt [°/rotation]: about 0.006
Resolution /rotation [°/rotation]: about 0.006
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.44

Downloads

OSE-LMHB-25.4M_STP.zip

OSE-LMHB.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 9
Adjustment range tilt ±[mm]: 2.8
Adjustment range rotation ±[mm]: 2.8
Coarse resolution /tilt [°/rotation]: -
Coarse resolution /rotation [°/rotation]: -
Fine adjustment range /tilt [°/rotation]: -
Fine adjustment range /rotation [°/rotation]: -
Fine adjuster indicator conversion /tilt: -
Fine adjuster indicator conversion /rotation: -
Resolution /tilt [°/rotation]: about 0.006
Resolution /rotation [°/rotation]: about 0.006
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.44

Downloads

OSE-LMHB-30M_STP.zip

OSE-LMHB.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 16
Adjustment range tilt ±[mm]: 1.8
Adjustment range rotation ±[mm]: 1.8
Coarse resolution /tilt [°/rotation]: -
Coarse resolution /rotation [°/rotation]: -
Fine adjustment range /tilt [°/rotation]: -
Fine adjustment range /rotation [°/rotation]: -
Fine adjuster indicator conversion /tilt: -
Fine adjuster indicator conversion /rotation: -
Resolution /tilt [°/rotation]: about 0.004
Resolution /rotation [°/rotation]: about 0.004
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-LMHB-50M_STP.zip

OSE-LMHB.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 16
Adjustment range tilt ±[mm]: 1.8
Adjustment range rotation ±[mm]: 1.8
Coarse resolution /tilt [°/rotation]: -
Coarse resolution /rotation [°/rotation]: -
Fine adjustment range /tilt [°/rotation]: -
Fine adjustment range /rotation [°/rotation]: -
Fine adjuster indicator conversion /tilt: -
Fine adjuster indicator conversion /rotation: -
Resolution /tilt [°/rotation]: about 0.004
Resolution /rotation [°/rotation]: about 0.004
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-LMHB-50.8M_STP.zip

OSE-LMHB.pdf

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 4 - 17
Adjustment range tilt ±[mm]: 1.8
Adjustment range rotation ±[mm]: 1.8
Coarse resolution /tilt [°/rotation]: -
Coarse resolution /rotation [°/rotation]: -
Fine adjustment range /tilt [°/rotation]: -
Fine adjustment range /rotation [°/rotation]: -
Fine adjuster indicator conversion /tilt: -
Fine adjuster indicator conversion /rotation: -
Resolution /tilt [°/rotation]: about 0.004
Resolution /rotation [°/rotation]: about 0.004
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-LMHB-60M_STP.zip

OSE-LMHB.pdf

Holders.zip
