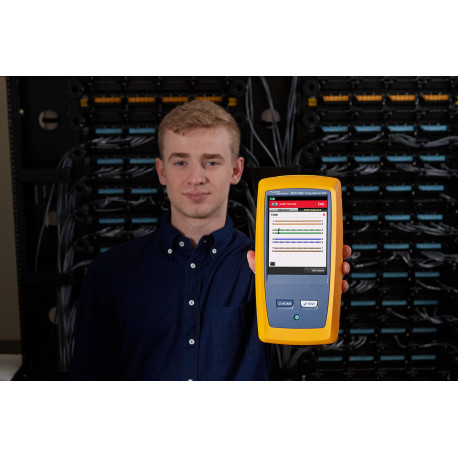

DSX-602 CableAnalyzer

dsx-602
search
  • dsx-602
  • dsx-602
  • dsx-602
  • dsx-602
  • dsx-602

Reference number: FLK-DSX-602

The Fluke Networks DSX-602 delivers the essentials of Cat 6A and Class EA copper certification with test times as fast as 10 seconds and an enhanced user interface.

alt

Need more info?
Contact our expert.

Network Technology Team
Phone: +49 8153 405-11

Description

Overview

The DSX-602 CableAnalyzer™ is the essential certification tool for structured twisted pair copper cabling from Cat 3/Class C to Cat 6A/Class EA with speed and reliability for greater efficiency and productivity - you'll see the results on your bottom line. No other meter performs as consistently as the DSX-602, and its gesture-based user interface allows your technicians to spend less time interpreting screens and more time measuring. Frequency range of 500 MHz certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in as little as 10 seconds. Advanced diagnostics find the point of failure. LinkWare™ Live is a cloud-based service that lets you manage project acceptance anytime, anywhere, with anyone on any device.

Product Highlights

Fundamental certification of twisted pair copper cabling from Cat 3/Class C to Cat 6A/Class EA.

The DSX-602 performs essential copper certification to Cat 6A and Class EA with test times of 10 seconds and enhanced user interface. Manage projects and meters from any smart device via Wi-Fi with LinkWare™ Live. With legendary Fluke Networks reliability backed by worldwide support.

  • Cat 6A and Class EA copper certification.
  • Includes channel adapters; optional rugged permanent link adapters with removable test plug are available
  • Cat 6A test time: 10 seconds
  • ProjX™ management system makes measurement setup fast and foolproof
  • HDTDX and HDTDR diagnostics locate the point of failure
  • Integrates with LinkWare™ Live to manage projects and jobsfrom any smart device.
  • Create professional PDF measurement reports quickly and easily using LinkWare™ PC.

Available DSX-602 models:

  • DSX2-602 INT up to Cat.6A / Class EA up to 500 MHz with channel adapter only.
  • DSX2-602-PRO INT up to Cat.6A / Class EA up to 500 MHz with channel and permanent link adapter
