Filters

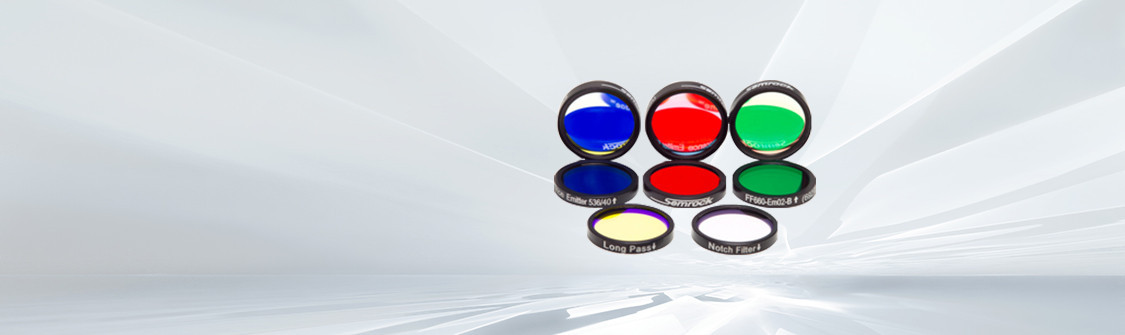

Optical filters are used to select the desired spectrum of a light beam. This can be necessary for different conditions. Bandpass filters are frequently used to clean up the spectrum after a beam source or before a detector. Bandpass, short-pass, long-pass, band-stop, and notch filters or beam splitters are distinguished according to their design.
- Material: Synthetic fused silica
- Wavelength Range [nm]: 200-400
- Material: Synthetic fused silica
- Wavelength Range [nm]: 200-400
OSE-VPF-C
Bandpass Interference Filter, Circle
- Incident Angle: 0°
- Coating: Dielectric multi-layer coating, Metal coating
- Circle
OSE-VPF-S
Bandpass Interference Filter, Square
- Incident Angle: 0°
- Coating: Dielectric multi-layer coating, Metal coating
- Square
