OPT-SL Direct Structured Lights

Description

Product Features:

• The lens position is adjustable, no need adapter rings
• Suitable for C Mount lens with sensor size of 2/3’’
• Multiple grid chips can be customized according to the actual application
• The spot boundary is clear and uniform, can realize precise illumination
• The lights is perpendicular to the measuring surface and oblique illumination refer to OPT-SLS

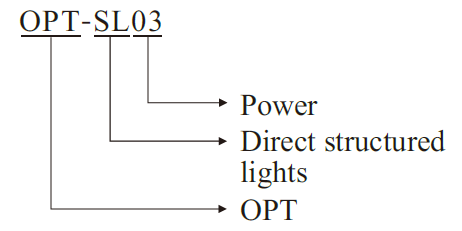

Selection Guide

Combination of Grid Chip and Lens

• The coating side of grid chip is facing toward the lens direction when assembling.
• When replacing the grip, rotate the clamping ring to replace the grid chip.

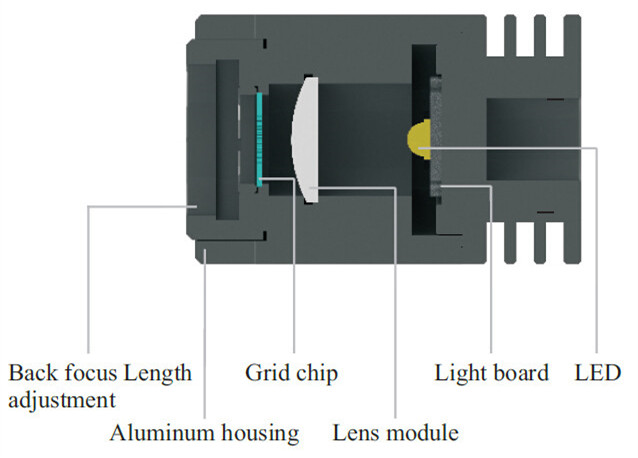

Sectional Structure Diagram

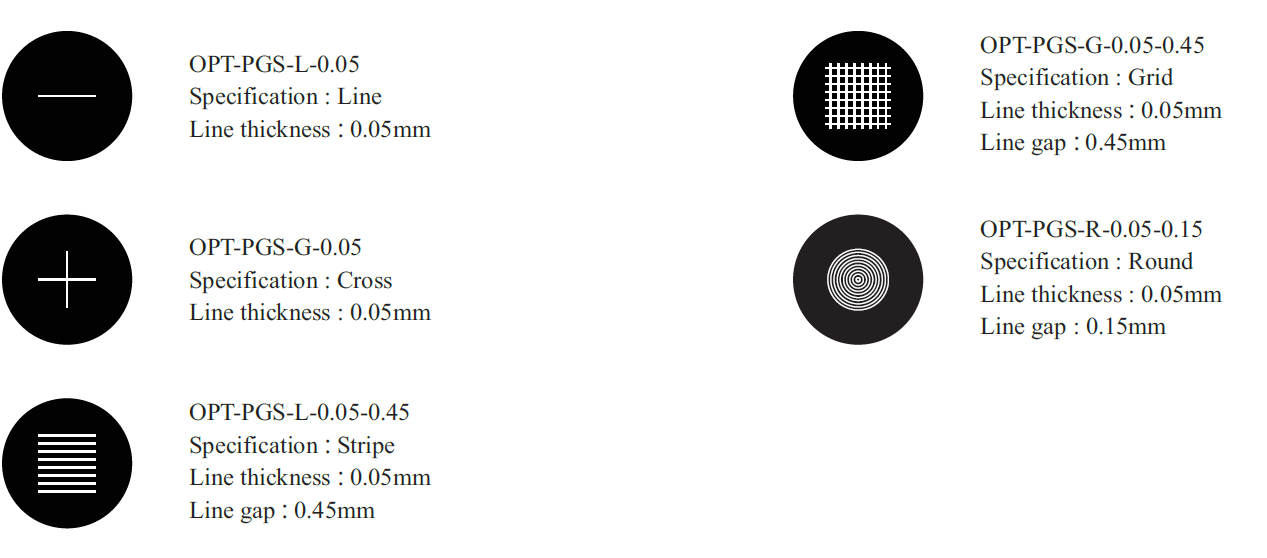

Grid Chip

Lens and Spot Size
