Reference number: BWT-Exemplar HT

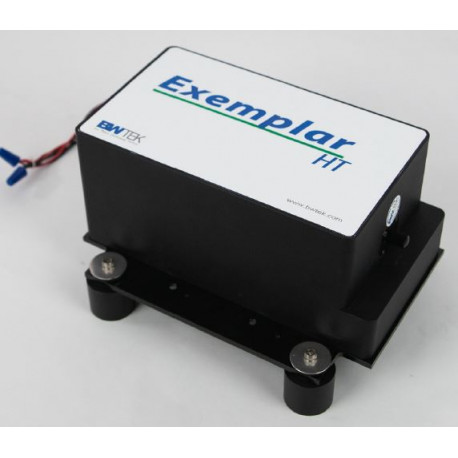

The Exemplar® HT is a high-performance Raman spectrometer with very high throughput. The back-thinned CCD detector allows highest efficiency with low noise and high dynamic range.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

Raman spectrometer with transmission grating for highest efficiency

The Exemplar® HT Raman spectrometer takes advantage of a transmission grating that light passes through twice to realize a low f/# and increase light efficiency. The combination of this unique design and the sensitive detector gives the Raman system excellent characteristics that are ideal for low-light applications. With integrated on-board data processing including averaging, smoothing and dark current compensation, the high transmission rate of 140 spectra per second and the outstanding signal-to-noise ratio, this Raman spectrometer offers first-class results in most applications.

Applications

  • Raman and fluorescence spectroscopy
  • On-line process monitoring
  • Biomedical spectroscopy
  • Gas and water analysis
