Reference number: ADM-Hera

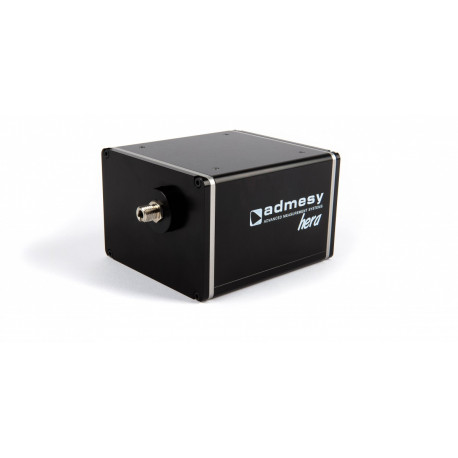

The Hera spectrometer from Admesy provides an accurate UV-VIS spectrometer with auto range function and excellent linearity in a rugged housing of only 95x85x61mm.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team

Description

Compact high end spectrometer from Admesy

The Hera spectrometer series is a highly accurate spectrometer with auto range function and excellent linearity in a robust and compact housing. Due to this combination the Hera can be used in a broad range of applications varying from R&D research to non-stop use in production environments. The Hera is available with a fixed (lens or cosine corrector) or fiber optics setup covering all you need to start your measurements. The Hera: stuffed with measurement power!

Highlights of the compact high end spectrometer

  • Numerous spectral ranges: 380 - 780 nm, 360 - 830 nm, 190 - 435 nm, 200 - 1100 nm
  • Fiber, lens or cosine corrector configuration
  • Measures xy, CRI, CCT, luminance, spectrum
  • Autorange function
  • Excellent linearity
  • Dark current compensated
  • Numerous interfaces (USB, RS232, Ethernet), ideal for system integration
  • USBTMC compliant, SCPI command set, High speed device
  • All calculations done inside

Specifications

Model

Hera 01 – VIS

Spectral range

380 - 780 nm

Optical resolution (FWHM)

2.3 nm

Order sorting filter

2nd order sorting filter

Wavelength accuracy

+/- 0.5 nm

Stray light

<0.03 %

Luminance accuracy*2

+/-4%

Chromaticity accuracy*2

+/- 0.002

Non - Linearity

< 1%

Integration time

2.5 ms – 20 s

Spectral resolution

Selectable 0.5 nm - 1 nm - 2.5 nm - 5 nm - 10 nm

Interfaces

High speed USB, RS232, Ethernet, Trigger connections

Measurement parameters

Spectral output, radiometric data or colour data (Lumen, x,y, DWL, PWL, CRI, CCT, etc.)

Data processing time

14 ms

Size (L x W x H)

95 x 81 x 61mm (without optical system)

Weight

650 gram

Operating temperature

10 - 35 °C

Power consumption

1250 mW

Luminance range

0.05 – 6000 cd/m²

Wavelength accuracy

+/- 0.5 nm

Luminance accuracy (measured at standard illuminant A)

+/-4%

Colour accuracy (measured at standard illuminant A)

+/-0.002
