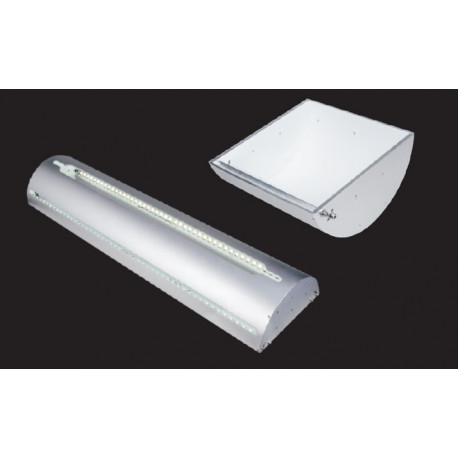

OPT-LIU Vault Lights
Reference number: OPT-LIU
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Product Features:
- Provides uniform illumination
- Combines the features of dome lights and bar lights
- Opening on the top for the easy installation of area-array cameras or line scan cameras
|
Part number |
Dimensions [mm] |
Color [c] |
Emitting surface [mm] |
Output [W] |
Compatible Controller |
|
OPT-LIU205-[c] |
90 x 205 |
G / B / W / R |
46 x 189 |
19.2 / 28.8 / 28.8/ 28.8 |
|
|
OPT-LIU285-[c] |
194 x 285 |
G / B / W / R |
100 x 265 |
76.8 / 115.2 / 115.2 / 115.2 |
|
|
OPT-LIU362-[c] |
186 x 362 |
G / B / W / R |
102 x 350 |
57.6 / 96 / 96 / 96 |
|
|
OPT-LIU423-[c] |
154 x 423 |
G / B / W / R |
60 x 401 |
76.8 / 168 / 168 / 168 |
|
|
OPT-LIU500-[c] |
146 x 500 |
G / B / W / R |
50 x 480 |
76.8 / 115.2 / 115.2 / 115.2 |
|
|
OPT-LIU600-[c] |
188 x 600 |
G / B / W / R |
94 x 590 |
76.8 / 134.4 / 134.4 / 134.4 |
