Polarcor Polarizers

Reference number: OSE-PLC-10-660

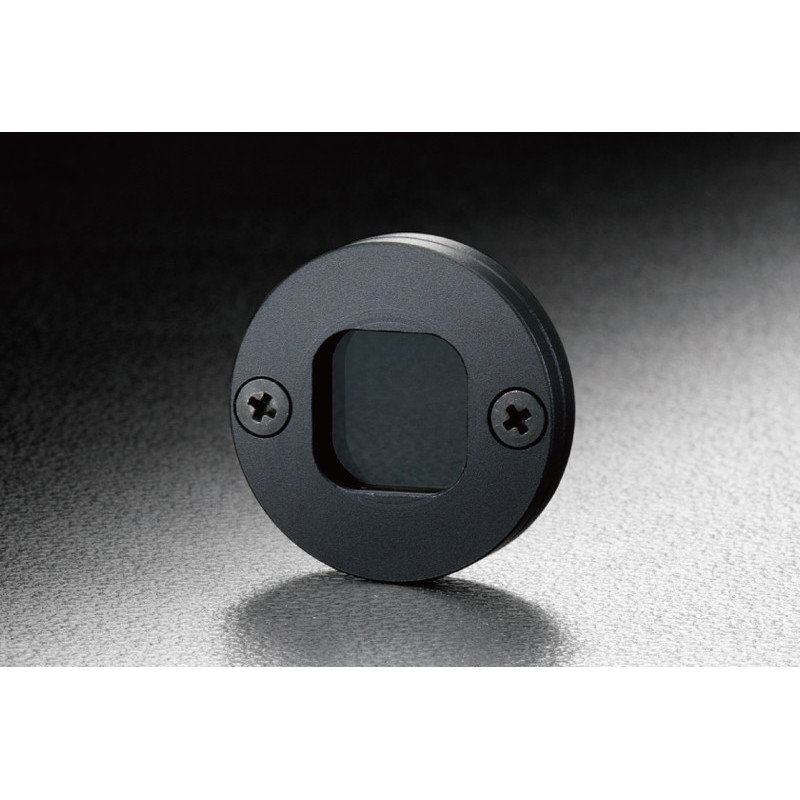

Polarcor is a polarizer made of glass. It offers a high extinction ratio in the infrared range.

Wavelength Range in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Wavelength Range [nm]: 740 - 860
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >91
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-800_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 840 - 960
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >94
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-900_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 960 - 1160
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >95
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-1060_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 1275 - 1345
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >98
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-1310_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 1510 - 1590
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >98
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-1550_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip

Wavelength Range [nm]: 630 - 700
Material: Alkali Borosilicate Glass
Material of frame: Aluminum Finishing: Lusterless black anodized
Transmittance [%]: >83
Laser Damage Threshold [J/cm² ]: 0.1
Beam Deviation: <20
Coating: Dielectric multi-layer AR coating
Surface Quality (Scratch - Dig): 40-20
Transmitted wavefront distortion: λ
Extinction ratio: 1×10^-4
Angular Field [°]: ±15

Downloads

OSE-PLC-10-660_STP.zip

OSE-PLC.pdf

Opt_Polarizers_.zip
