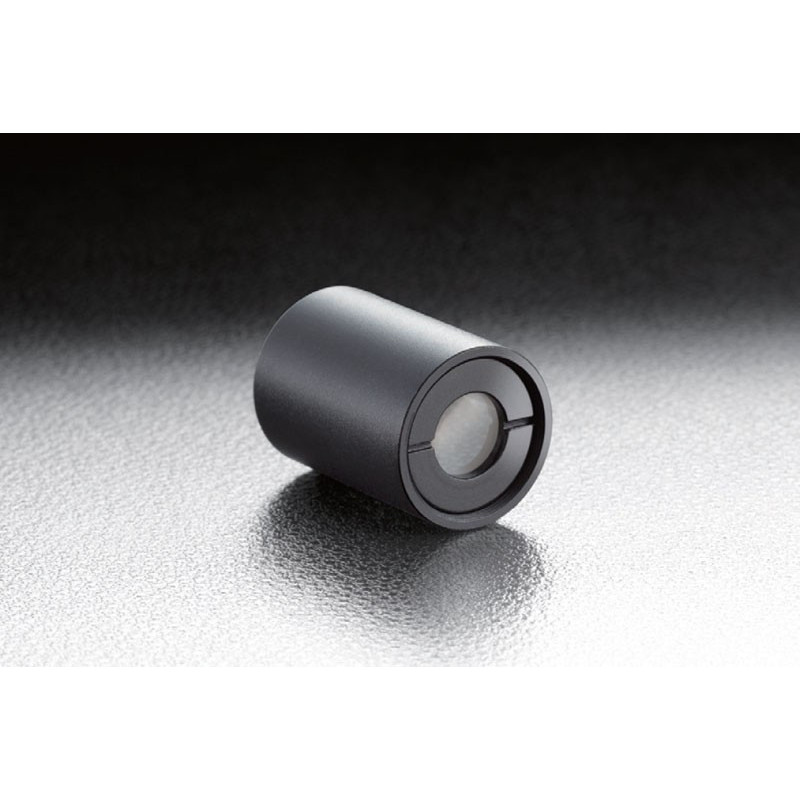

Roshon Polarizing Prism, Quartz

search

Reference number: OSE-RSPCQ-10

The polarizer separates the incident light into two linearly polarized light beams that cross perpendicularly.

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Wavelength Range [nm]: 200 - 2300
  • Material: Quartz
  • Material of frame: Aluminum Finishing: Black anodized
  • Laser Damage Threshold [J/cm² ]: 0.3
  • Surface flatness of substrate: λ/4
  • Beam Deviation: <3
  • Coating: Uncoated
  • Surface Quality (Scratch - Dig): 20-10
  • Extinction ratio: <2×10^-4
  • ØA [mm]: 10
  • ØD×L [mm]: 25.4×28
  • Separation angle [ ° ]: 1 - 1,5
