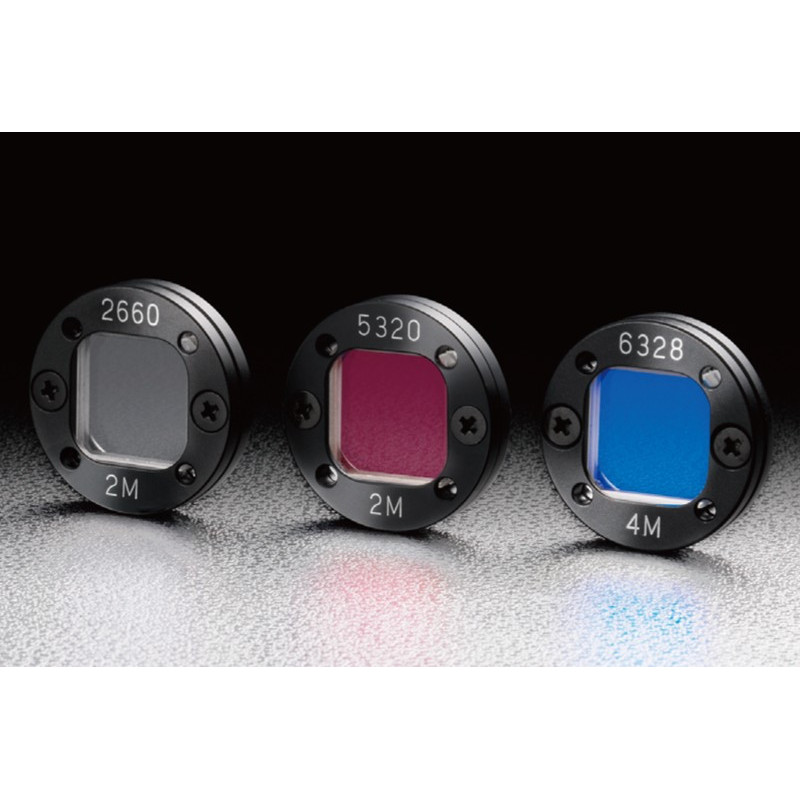

Quartz Waveplates

Reference number: OSE-WPQ-2660-2M

Quartz waveplates are zero-order retardation plates composed of pairs of optically contacted crystalline quartz plates mounted on aluminum frames.

€561.80

Tax excluded

Wavelength Range in nm

Phase Difference (1064 nm)

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2

Those products may also interest you

Plate Polarizing Beamsplitters

OSE-PBS-C

€226.60
High Power Polarizing Beamsplitters

OSE-PBSHP

€531.60
Broadband Polarizing Beamsplitters

OSE-PBSW

€435.60
Polarizing Beamsplitters

OSE-PBS

€233.10
Broadband Quartz Waveplates

OSE-WPQW

€1,343.60

Wavelength Range [nm]: 266
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 133
Retardation tolerance: < λ/50

Downloads

Wavelength Range [nm]: 325
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 162.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3250-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 355
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 177.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3550-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 405
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 202.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4050-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 410
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 205
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4100-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 441.6
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 220.8
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4416-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 457.9
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 229
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4579-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 488
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 244
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4880-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 514.5
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 257.3
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5145-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 532
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 266
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5320-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 632.8
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 316.4
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6328-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 670
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 335
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6700-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 780
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 390
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-7800-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 830
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 415
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-8300-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1064
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 532
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-10640-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1300
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 650
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-13000-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1550
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/2
Theoretical retardation [nm]: 775
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-15500-2M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 266
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 66.5
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-2660-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 325
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 81.3
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3250-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 355
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 88.8
Retardation tolerance: < λ/50

Downloads

OSE-WPQ-3550-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 405
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 101.3
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4050-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 410
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 102.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4100-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 441.6
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 110.4
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4416-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 457.9
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 114.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4579-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 488
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 122
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-4880-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 514.5
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 128.6
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5145-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 532
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 133
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-5320-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 632.8
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 158.2
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6328-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 670
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 167.5
Retardation tolerance: λ/100 - λ/200

Downloads

OSE-WPQ-6700-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 780
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 195
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-7800-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 830
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 207.5
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-8300-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1064
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 266
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-10640-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1300
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 325
Retardation tolerance: λ/200 - λ/500

Downloads

OSE-WPQ-13000-4M_STP.zip

DOWNLOAD

OSE-WPQ.pdf

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1550
Material: Optical grade crystalline quarts, MgF2
Material of frame: Aluminum Finishing: Black anodized
Transmittance [%]: 98.5
Laser Damage Threshold [J/cm² ]: 1
Surface flatness of substrate: λ/10
Angular deviation of transmitted beam: <5
Coating: Both surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: 17×17
Type: λ/4
Theoretical retardation [nm]: 387.5
Retardation tolerance: λ/200 - λ/500
