Reference number: OSE-PT-ON200

OptoNano microscope with high resolution by optical microsphere nanoscopy, CMOS camera with 5M pixel, motorized XY stage, transparent LED illumination stage and coaxial illumination.

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team

Description

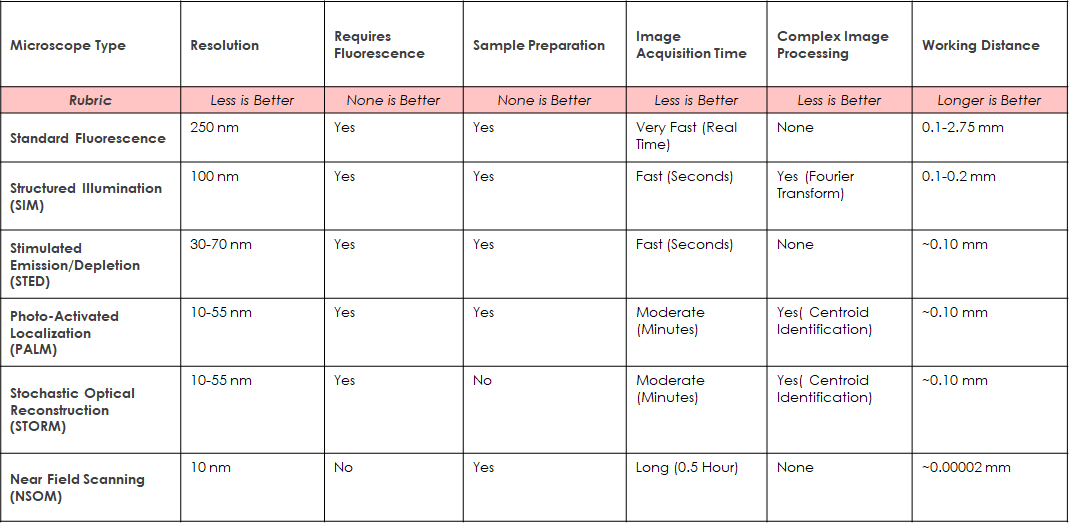

Microscopy has evolved from conventional optical solutions to highly developed "super-resolution microscopes". In classical microscopy, resolution is limited by the diffraction limit (according to Abbe). This corresponds approximately to half the wavelength of the light source used. Thus, the resolution is limited to a maximum of 200 nm (with blue light irradiation and ambient air).

The revolutionary high-resolution microscope or so-called "super-resolution-microscopy" OptoNano 200 overcomes this limit, with a technology called "Optical Microsphere Nanoscopy" (OMN). Thus, the OptoNano 200 is the world's first imaging instrument with nanometer resolution in ambient air. This allows structures as small as 137nm to be resolved without the need for complex sample preparation. This saves time and costs and allows the unique OptoNano 200 to be used in both research laboratories and industrial production.



Name

High-resolution microscope OptoNano 200, 5M Pixel CMOS camera, motorized XY stage, blue or white coaxial LED illumination

Weight

15 kgs.

Illumination

Blue LED 420 nm or white LED 700 nm, coaxial

Ambient conditions

Ambient air

Effective resolution

137 nm

Camera type

5MP, 8.44 X 7.06 mm monochromatic or color CMOS, C-Mount, USB3.0 SS

Delivered 10x lens

0.3 NA, f20 mm, 6.4 mm WD, 12 mm Pupil, 900 nm Res.

Delivered microsphere

0,55 NA, f4 mm, 0-3 µm WD, 4,4 mm Pupil, <200 nm Res.
