Actuators, X: 13 or 25 mm

Reference number: OSE-SGSP-13ACT-B0

€524.90

Tax excluded

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

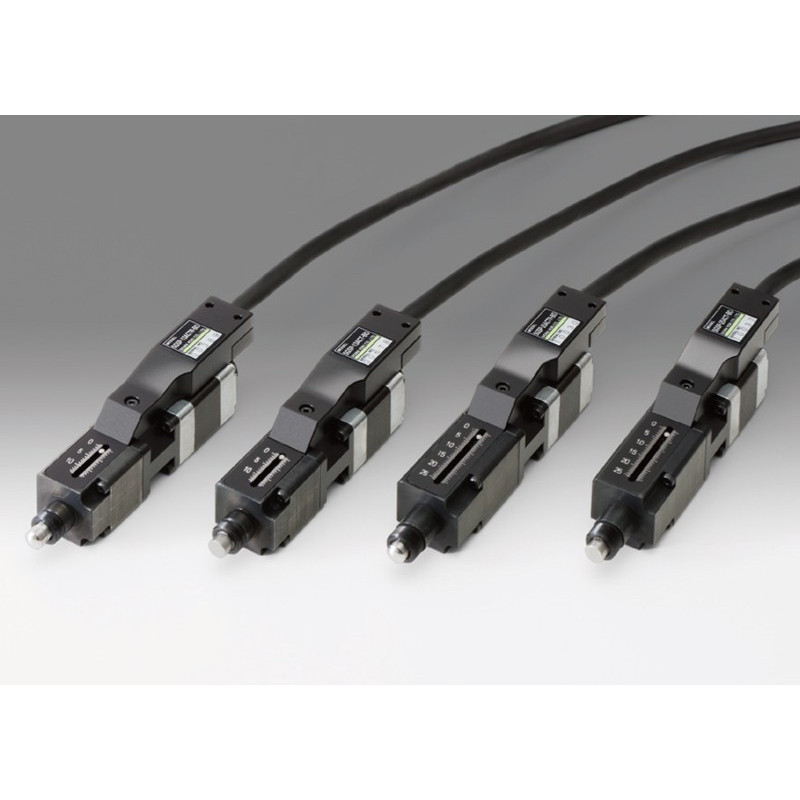

A low price actuator fitted with a high-performance compact stepping motor and precision ground screws.

Single-Pulse Travel [?m] (full step/half step):

1/0.5

Type:

5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

PK513PB-C9 (?20mm)

Feed screw [mm]:

Precision ground screw Ø4, 0.5mm lead

Tip Shape:

Flat type

e Travel [mm]:

Maximum Travel [mm/sec]:

Positioning Accuracy [mm:

0.01

Positional Repeatability [mm]:

0.003

Lost Motion [mm]:

0.005

Load Capacity (Static load) [N]:

3kgf

Weight [kg]:

0.16

Downloads

OSE-HIT-S_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Single-Pulse Travel [?m] (full step/half step): 1/0.5

Type: 5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK513PB-C9 (?20mm)

Feed screw [mm]: Precision ground screw Ø4, 0.5mm lead

Tip Shape: R Type

e Travel [mm]: 13

Maximum Travel [mm/sec]: 2

Positioning Accuracy [mm: 0.01

Positional Repeatability [mm]: 0.003

Lost Motion [mm]: 0.005

Load Capacity (Static load) [N]: 3kgf

Weight [kg]: 0.16

Downloads

OSE-HIT-S_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Single-Pulse Travel [?m] (full step/half step):

1/0.5

Type:

5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

PK513PB-C9 (?20mm)

Feed screw [mm]:

Precision ground screw Ø4, 0.5mm lead

Tip Shape:

Flat type

e Travel [mm]:

Maximum Travel [mm/sec]:

Positioning Accuracy [mm:

0.015

Positional Repeatability [mm]:

0.003

Lost Motion [mm]:

0.005

Load Capacity (Static load) [N]:

3kgf

Weight [kg]:

0.18

Downloads

OSE-HIT-S_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Single-Pulse Travel [?m] (full step/half step): 1/0.5

Type: 5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK513PB-C9 (?20mm)

Feed screw [mm]: Precision ground screw Ø4, 0.5mm lead

Tip Shape: R Type

e Travel [mm]: 25

Maximum Travel [mm/sec]: 2

Positioning Accuracy [mm: 0.015

Positional Repeatability [mm]: 0.003

Lost Motion [mm]: 0.005

Load Capacity (Static load) [N]: 3kgf

Weight [kg]: 0.18

Downloads

OSE-HIT-S_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD
