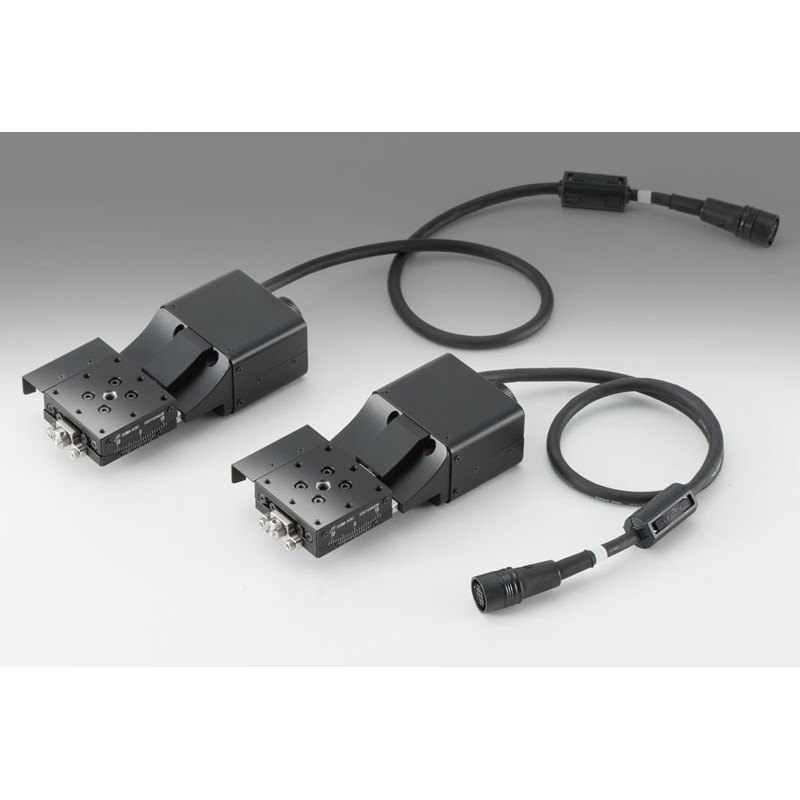

Goniometers, 40 x 40 mm

Reference number: OSE-OSMS-40A60

Model

Travel in °

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

High precision motorized goniometers with integrated bearing ways for superior stiffness, accuracy and durability. Their smooth motion makes them ideal for frequent angle adjustment.

Travel [mm]: ±5

Table Size [mm]: 40x40

Travel Mechanism (reduction ratio): Worm gear (1:332)

Positioning Slide: Extended Contact Ball Guide

Stage Material: SUS440C quench hardened

Finish: Super black chrome

Weight [kg]: 0.4

Stage Height [mm]: 15

Rotation Center Height [mm]: 60±0.1

Rotation Center Deflection Accuracy [mm]: Ø0.01

Resolution/(Full) [°/pulse]: 0.00217

Resolution/(Half) [°/pulse]: 0.00108

MAX Speed [°/sec]: 10

Positional Repeatability[°]: 0.004

Load Capacity [N]: 19.6

Moment Stiffness [´´/N*m]: Roll 0.6 Yaw 0.6

Lost Motion [°]: 0.02

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation): Limit Sensor

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC-5V±24V

Current Consumption: 40mA or lower (20mA per sensor)

Control Output: NPN open collector output 50mA

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: ±5

Table Size [mm]: 40x40

Travel Mechanism (reduction ratio): Worm gear (1:332)

Positioning Slide: Extended Contact Ball Guide

Stage Material: SUS440C quench hardened

Finish: Super black chrome

Weight [kg]: 0.4

Stage Height [mm]: 15

Rotation Center Height [mm]: 60±0.1

Rotation Center Deflection Accuracy [mm]: Ø0.01

Resolution/(Full) [°/pulse]: 0.00217

Resolution/(Half) [°/pulse]: 0.00108

MAX Speed [°/sec]: 10

Positional Repeatability[°]: 0.004

Load Capacity [N]: 19.6

Moment Stiffness [´´/N*m]: Roll 0.6 Yaw 0.6

Lost Motion [°]: 0.02

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation): Limit Sensor

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC-5V±24V

Current Consumption: 40mA or lower (20mA per sensor)

Control Output: NPN open collector output 50mA

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: ±4

Table Size [mm]: 40x40

Travel Mechanism (reduction ratio): Worm gear (1:406)

Positioning Slide: Extended Contact Ball Guide

Stage Material: SUS440C quench hardened

Finish: Super black chrome

Weight [kg]: 0.4

Stage Height [mm]: 15

Rotation Center Height [mm]: 75±0.1

Rotation Center Deflection Accuracy [mm]: Ø0.01

Resolution/(Full) [°/pulse]: 0.00177

Resolution/(Half) [°/pulse]: 0.00089

MAX Speed [°/sec]: 8.9

Positional Repeatability[°]: 0.004

Load Capacity [N]: 19.6

Moment Stiffness [´´/N*m]: Roll 0.6 Yaw 0.6

Lost Motion [°]: 0.02

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation): Limit Sensor

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC-5V±24V

Current Consumption: 40mA or lower (20mA per sensor)

Control Output: NPN open collector output 50mA

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]: ±4

Table Size [mm]: 40x40

Travel Mechanism (reduction ratio): Worm gear (1:406)

Positioning Slide: Extended Contact Ball Guide

Stage Material: SUS440C quench hardened

Finish: Super black chrome

Weight [kg]: 0.4

Stage Height [mm]: 15

Rotation Center Height [mm]: 75±0.1

Rotation Center Deflection Accuracy [mm]: Ø0.01

Resolution/(Full) [°/pulse]: 0.00177

Resolution/(Half) [°/pulse]: 0.00089

MAX Speed [°/sec]: 8.9

Positional Repeatability[°]: 0.004

Load Capacity [N]: 19.6

Moment Stiffness [´´/N*m]: Roll 0.6 Yaw 0.6

Lost Motion [°]: 0.02

Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation): Limit Sensor

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: PK523HPB-C12 (28mm)

Step Angle: 0.72°

Power Voltage: DC-5V±24V

Current Consumption: 40mA or lower (20mA per sensor)

Control Output: NPN open collector output 50mA

Output Logic: When shaded: Output transistor OFF (no conduction)

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL

Compatible Controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
