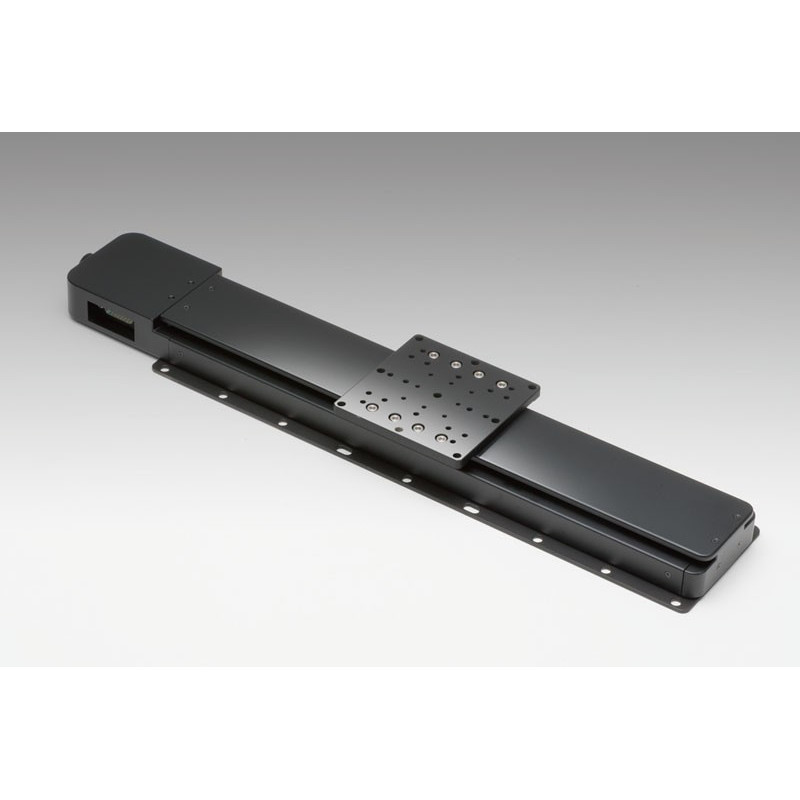

X Axes, 100 x 100 mm
Reference number: OSE-OSMS26-50(X)
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
- Travel [mm]: 50
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.2
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 5
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 50
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.2
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 5
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 50
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.2
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 5
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 100
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.7
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 10
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 100
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.7
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 10
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 100
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 2.7
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 10
- Positional Repeatability[µm]: 3
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 3
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 25/20
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 200
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 3.8
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 15
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 200
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 3.8
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 15
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 200
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 3.8
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 15
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 10
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 300
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 4
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 20
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 20
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 300
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 4
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 20
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 20
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
- Travel [mm]: 300
- Table Size [mm]: 100x100 (120x120)
- Feed Screw: Ball screw diameter Ø8mm, 2mm lead
- Positioning Slide: Outer rail structure
- Stage Material: Aluminium
- Finish: Black anodized
- Weight [kg]: 4
- Resolution/(Full) [µm/pulse]: 4
- Resolution/(Half) [µm/pulse]: 2
- MAX Speed [mm/sec]: 40
- Positioning Accuracy [µm]: 20
- Positional Repeatability[µm]: 6
- Load Capacity [N]: 117
- Pitch [´´/N*cm]: 0.23
- Yaw [´´/N*cm]: 0.12
- Roll [´´/N*cm]: 0.2
- Lost Motion [µm]: 5
- Backlash [µm]: 3
- Parallelism [µm]: 50
- Running Parallelism [µm]: 20
- Pitch [´´]/Yaw [´´]: 30/25
- Sensor Part Number: Micro photo sensor: GP1S092HCPIF(Sharp Corporation)
- Limit Sensor: Equipped (NORMAL CLOSE)
- Origin Sensor: Equipped
- Proximity Origin Sensor: Equipped
- Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)
- Motor Part Number: PK525HPB-C4 (28mm)
- Step Angle: 0.72°
- Power Voltage: DC5-24V ±10%
- Current Consumption: 80mA or lower (20mA or lower per sensor)
- Control Output: NPN open collector output DC30V or lower, 50mA or lower
- Output Logic: When shaded: Output transistor OFF (no conduction)
- Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04
