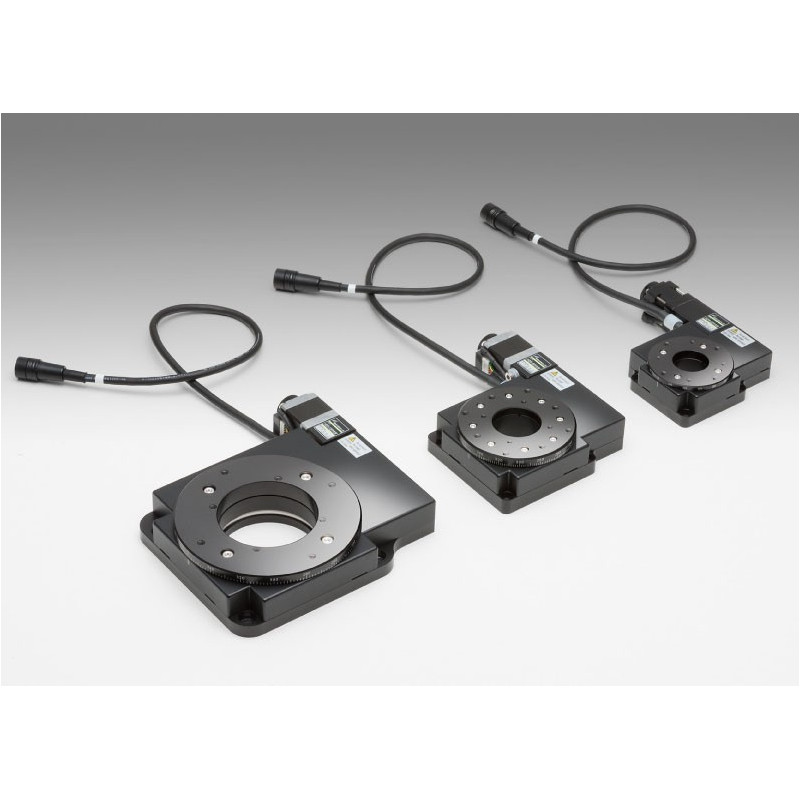

High Durability Rotation Stages

Reference number: OSE-HDS-80YAW

Stage Size in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Limited range high duty cycle rotation stage

Rotation Range : ±5°

Table Size [mm]: Ø80

Travel Mechanism (reduction ratio): Ball screw with steel belt

Positioning Slide: Bearing method

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 0.9

Resolution/(Full) [°/pulse]: 0.00038

Resolution/(Half) [°/pulse]: 0.00019

MAX Speed [mm/sec]: 60

Positioning Accuracy [°]: 0.05

Positional Repeatability[°]: 0.003

Load Capacity [N]: 58.8

Moment Stiffness [´´/N*m]: 0.2

Lost Motion [°]: 0.003

Backlash [°]: 0.05

Parallelism [µm]: 50

Concentricity [µm]: 10

Wobble [mm]: 0.01

Sensor Part Number: Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number: C9863-90215P (28mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor / When shaded: Output transistor ON (conduction): Origin sensor

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-80YAW_STP.zip

MotorizedStages.zip

Rotation Range :

±6°

Table Size [mm]:

Ø120

Travel Mechanism (reduction ratio):

Ball screw with steel belt

Positioning Slide:

Crossed roller guide

Stage Material:

Aluminium

Finish:

Black anodized

Weight [kg]:

1.4

Resolution/(Full) [°/pulse]:

0.00022

Resolution/(Half) [°/pulse]:

0.00011

MAX Speed [mm/sec]:

60

Positioning Accuracy [°]:

0.05

Positional Repeatability[°]:

0.003

Load Capacity [N]:

98

Moment Stiffness [´´/N*m]:

0.1

Lost Motion [°]:

0.003

Backlash [°]:

0.05

Parallelism [µm]:

50

Concentricity [µm]:

10

Wobble [mm]:

0.01

Sensor Part Number:

Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor:

Equipped (NORMAL CLOSE)

Origin Sensor:

Equipped (NORMAL OPEN)

Proximity Origin Sensor:

None

Type:

5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

C9863-90215P (28mm)

Downloads

OSE-HDS-120YAW_STP.zip

MotorizedStages.zip

Rotation Range : ±5°

Table Size [mm]: Ø60

Travel Mechanism (reduction ratio): Ball screw with steel belt

Positioning Slide: Bearing method

Stage Material: Aluminium

Finish: Black anodized

Weight [kg]: 0.5

Resolution/(Full) [°/pulse]: 0.00053

Resolution/(Half) [°/pulse]: 0.00027

MAX Speed [mm/sec]: 60

Positioning Accuracy [°]: 0.05

Positional Repeatability[°]: 0.003

Load Capacity [N]: 29.4

Moment Stiffness [´´/N*m]: 1

Lost Motion [°]: 0.003

Backlash [°]: 0.05

Parallelism [µm]: 50

Concentricity [µm]: 10

Wobble [mm]: 0.01

Sensor Part Number: Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor: Equipped (NORMAL CLOSE)

Origin Sensor: Equipped (NORMAL OPEN)

Proximity Origin Sensor: None

Type: 5-phase stepping motor 0.66A/phase (Tamagawa Seiki Co., Ltd.)

Motor Part Number: TS3664N4 (24mm)

Step Angle: 0.72°

Power Voltage: DC5-24V ±10%

Current Consumption: 60mA or lower (20mA or lower per sensor)

Control Output: NPN open collector output DC30V or lower, 50mA or lower

Output Logic: When shaded: Output transistor OFF (no conduction): Limit sensor / When shaded: Output transistor ON (conduction): Origin sensor

Compatible Driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC

Compatible Controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S, PGC-04

Downloads

OSE-HDS-120YAW_STP.zip

MotorizedStages.zip
