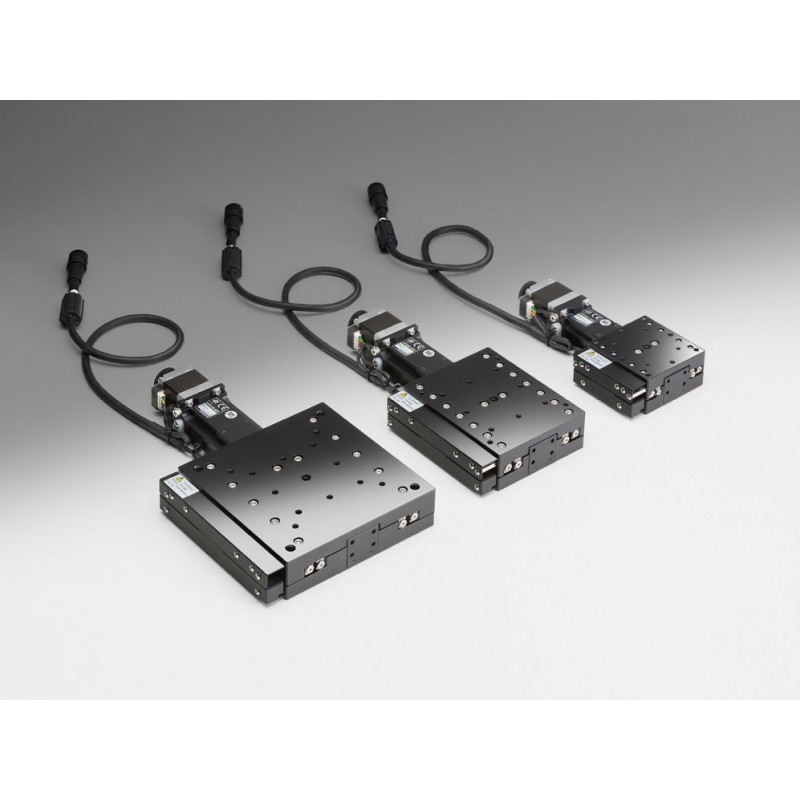

High Performance Motorized Stages

Reference number: OSE-HPS80-50X-M5

€924.00

Tax excluded

Travel in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Motorized stages with ball screws and extended contract bearings offer mid to upper level performance at a low price.

Travel [mm]:

Table Size [mm]:

80x80

Feed Screw:

Ball screw diameter Ø6mm, 1mm lead

Positioning Slide:

Ball guide

Stage Material:

Aluminium

Finish:

Black anodized

Weight [kg]:

Resolution/(Full) [µm/pulse]:

Resolution/(Half) [µm/pulse]:

MAX Speed [mm/sec]:

Positioning Accuracy [µm]:

Positional Repeatability[µm]:

Load Capacity [N]:

73.5

Pitch [´´/N*cm]:

0.5

Yaw [´´/N*cm]:

0.5

Roll [´´/N*cm]:

0.2

Lost Motion [µm]:

Backlash [µm]:

Parallelism [µm]:

Running Parallelism [µm]:

Pitch [´´]/Yaw [´´]:

30/25

Sensor Part Number:

Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor:

Equipped (NORMAL CLOSE)

Origin Sensor:

Equipped (NORMAL OPEN)

Proximity Origin Sensor:

None

Type:

5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

PK523HPB-C12 (28mm)

Step Angle:

0.72°

Power Voltage:

DC5-24V ±10%

Downloads

OSE-HPS80-50X-M5_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]:

Table Size [mm]:

120x120

Feed Screw:

Ball screw diameter Ø6mm, 1mm lead

Positioning Slide:

Ball guide

Stage Material:

Aluminium

Finish:

Black anodized

Weight [kg]:

1.5

Resolution/(Full) [µm/pulse]:

Resolution/(Half) [µm/pulse]:

MAX Speed [mm/sec]:

Positioning Accuracy [µm]:

Positional Repeatability[µm]:

Load Capacity [N]:

Pitch [´´/N*cm]:

0.5

Yaw [´´/N*cm]:

0.5

Roll [´´/N*cm]:

0.2

Lost Motion [µm]:

Backlash [µm]:

Parallelism [µm]:

Running Parallelism [µm]:

Pitch [´´]/Yaw [´´]:

30/25

Sensor Part Number:

Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor:

Equipped (NORMAL CLOSE)

Origin Sensor:

Equipped (NORMAL OPEN)

Proximity Origin Sensor:

None

Type:

5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

PK523HPB-C12 (28mm)

Step Angle:

0.72°

Power Voltage:

DC5-24V ±10%

Downloads

OSE-HPS120-60X-M5_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD

Travel [mm]:

Table Size [mm]:

60x60

Feed Screw:

Ball screw diameter Ø6mm, 1mm lead

Positioning Slide:

Ball guide

Stage Material:

Aluminium

Finish:

Black anodized

Weight [kg]:

0.6

Resolution/(Full) [µm/pulse]:

Resolution/(Half) [µm/pulse]:

MAX Speed [mm/sec]:

Positioning Accuracy [µm]:

Positional Repeatability[µm]:

Load Capacity [N]:

Pitch [´´/N*cm]:

0.4

Yaw [´´/N*cm]:

0.4

Roll [´´/N*cm]:

0.3

Lost Motion [µm]:

Backlash [µm]:

Parallelism [µm]:

Running Parallelism [µm]:

Pitch [´´]/Yaw [´´]:

25/25

Sensor Part Number:

Micro photo sensor: GP1S097HCZ(Sharp Corporation)

Limit Sensor:

Equipped (NORMAL CLOSE)

Origin Sensor:

Equipped (NORMAL OPEN)

Proximity Origin Sensor:

None

Type:

5-phase stepping motor 0.75A/phase (Oriental Motor Co., Ltd.)

Motor Part Number:

PK523HPB-C12 (28mm)

Step Angle:

0.72°

Power Voltage:

DC5-24V ±10%

Downloads

OSE-HPS60-20X-M5_STP.zip

DOWNLOAD

MotorizedStages.zip

DOWNLOAD
