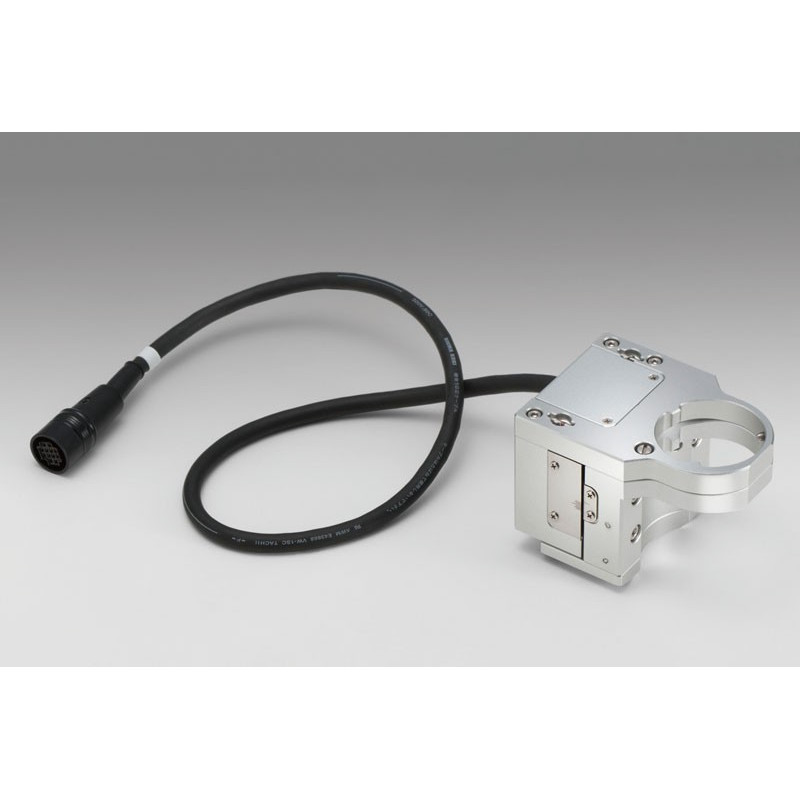

Actuator for Objective Lenses

Description

• Travel [mm]:

• • 3

• Table Size [mm]:

• • (Mounted adapter)

• Feed Screw:

• • Precision ground screw Ø6mm, 0.5mm lead

• Positioning Slide:

• • Crossed roller guide

• Stage Material:

• • Aluminium

• Finish:

• • White anodized

• Weight [kg]:

• • 0.4

• Resolution/(Full) [µm/pulse]:

• • 1

• Resolution/(Half) [µm/pulse]:

• • 0.5

• MAX Speed [mm/sec]:

• • 1

• Positioning Accuracy [µm]:

• • 5

• Positional Repeatability[µm]:

• • 2

• Load Capacity [N]:

• • 4.9

• Moment Stiffness [´´/N*m]:

• • -

• Lost Motion [µm]:

• • 2

• Backlash [µm]:

• • 1

• Parallelism [µm]:

• • -

• Running Parallelism [µm]:

• • 2

• Pitch [´´]/Yaw [´´]:

• • 15/15

• Sensor Part Number:

• • Micro photo sensor: GP1S092HCPIF(Sharp Corporation)

• Limit Sensor:

• • Equipped (NORMAL CLOSE)

• Origin Sensor:

• • None

• Proximity Origin Sensor:

• • None

• Type:

• • 5-phase stepping motor 0.35A/phase (Oriental Motor Co., Ltd.)

• Motor Part Number:

• • PK513PA-C21 (20mm)

• Step Angle:

• • 0.72°

• Power Voltage:

• • DC-5V±24V±10%

• Current Consumption:

• • 40mA or lower (20mA or lower per sensor)

• Control Output:

• • NPN open collector 50mA

• Output Logic:

• • In the case of light shielded, output transistor OFF (No conduction): Limit sensor

• Compatible Driver:

• • SG-5MA, SG-55MA, SG-514MSC

• Compatible Controller:

• GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M*HIT-S
