Reference number: EOP-SH-10-M-L

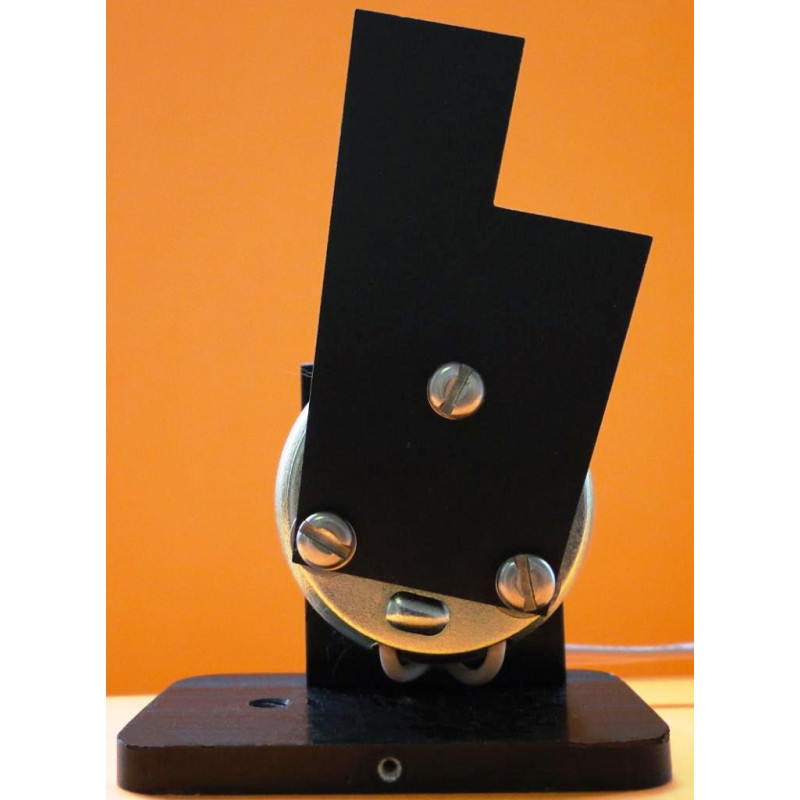

Longlife Shutter with Base Plate: Shutter allows horizontal and vertical mounting and can be mounted directly to an optical table, 50 million cycles minimum
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Description
The laser safety shutter EOP-SH series is ideally suited as an OEM component for low-cost switching and modulating laser radiation. A number of variations are possible, or customized available für larger quantities.
The EOP-SH consists of a blade mounted on a rotary solenoid with a limited roation angle. When the shutter is powered, the blade moves tot he „ON“ position and clears the path for the laser beam. When the power is turned off, the return spring oft he shutter moves the blade tot he „OFF“ position and block the laser beam. The standard blade material is 0.1“ thick anodized aluminium; to meet laser specifications, other materials or thickness are available.
Highlights:
| Aperture (mm) | 13 |
| Power requirements (V) | 5, 12, 15, 24 |
| Response Time (ms) | 15 |
| Min. life operation | 2 Millionen Zyklen |
| Max. life operation Model –L | 50 Millionen Zyklen |
| Return spring torque (nm) | 0.0055 to 0.009 |
| Dimensions (mm) | 43 x 56 x 29 |
| Weight (g) | 60 |
| Max. operating temperature (°C) | 75 |
